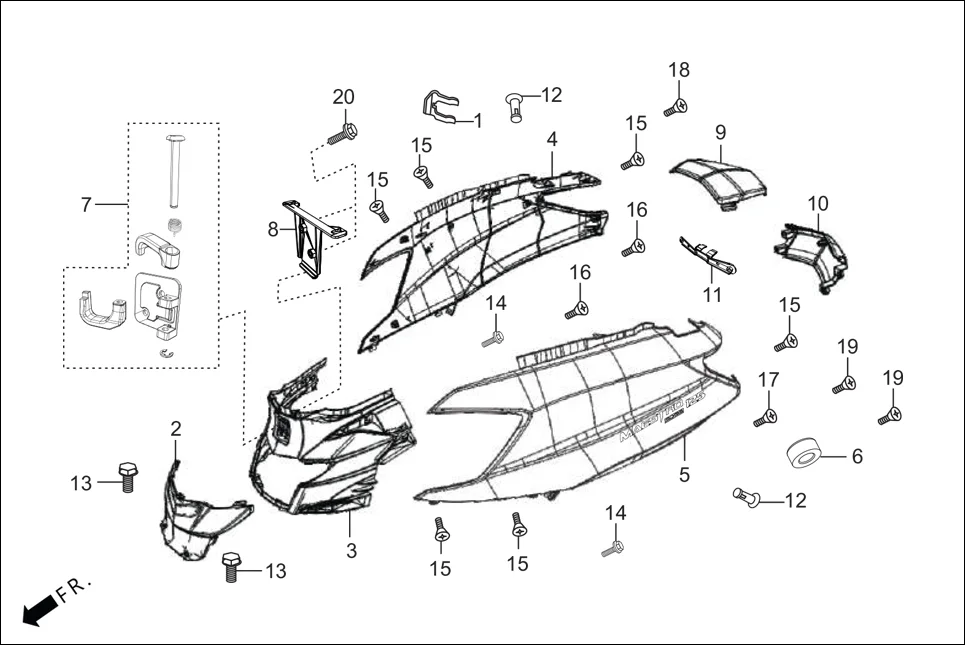

F-8-DISC - BODY COVER
Hero MAESTRO EDGE 125CC(March,2023) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 80151-ABH-400 | COVER CENTER | 1 | |
| 2 | 80151-ABH-400Y | COVER CENTER (RD(L)-010S(G) P RED) | 1 | |
| 3 | 80152-ABH-400 | COVER CENTRE B | 1 | |
| 3 | 80152-ABH-400Y | COVER CENTRE B (RD(L)-010S(G) P RED) | 1 | |
| 4 | 83300-ABH-500R | SET R. BODY COVER (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 4 | 83300-ABH-500S | SET R. BODY COVER (PANTHER BLACK ME.) | 1 | |
| 4 | 83300-ABH-500U | SET R. BODY COVER (CANDY BLAZING RED) | 1 | |
| 4 | 83300-ABH-5002 | SET R. BODY COVER (MATT TECHNO BLUE) | 1 | |
| 5 | 83400-ABH-500R | SET L. BODY COVER (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 5 | 83400-ABH-500S | SET L. BODY COVER (PANTHER BLACK ME.) | 1 | |
| 5 | 83400-ABH-500U | SET L. BODY COVER (CANDY BLAZING RED) | 1 | |
| 5 | 83400-ABH-5002 | SET L. BODY COVER (MATT TECHNO BLUE) | 1 | |
| 9 | 83700-ABH-400R | SET ILLUST COVER RR CENTER (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 9 | 83700-ABH-400S | SET COVER, RR. CENTER (PANTHER BLACK ME.) | 1 | |
| 9 | 83700-AAW-B00U | SET COVER, RR. CENTER (CANDY BLAZING RED) | 1 | |
| 9 | 83700-ABG-200T | SET COVER, RR. CENTER (MATT TECHNO BLUE BL (BR)-003M (F) | 1 | |
| 10 | 83702-ABH-400R | COVER RR CENTER LOWER (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 10 | 83702-ABH-400S | COVER, RR. CENTER LOWER (PANTHER BLACK ME.) | 1 | |
| 10 | 83702-ABH-500U | COVER, RR. CENTER LOWER (CANDY BLAZING RED) | 1 | |
| 10 | 83702-ABG-200T | COVER, RR. CENTER LOWER (MATT TECHNO BLUE BL (BR)-003M (F) | 1 | |
