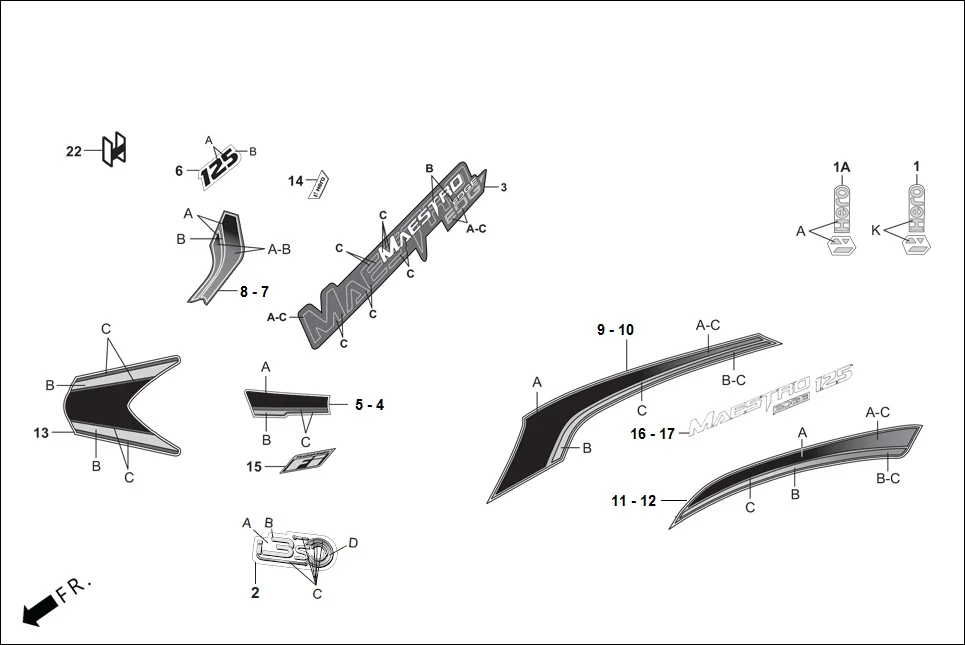

F-26-DISC - MARK/STRIPE
Hero MAESTRO EDGE 125CC(March,2023) · 55 parts
Parts in This Assembly (55)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83771-ABH-400R | MARK HERO COVER RR CENTER (TYPE-1) | 1 | |
| 1 | 83771-ABH-400S | MARK HERO COVER RR CENTER (TYPE-2) | 1 | |
| 1 | 83771-ABG-200R | MARK CENTER RR. COWL (TYPE-1) | 1 | |
| 2 | 86216-ABH-200R | MARK I3S COVER FR CENTER (TYPE-1) | 1 | |
| 2 | 86216-ABG-300R | MARK I3S COVER FR CENTER (TYPE-1) | 1 | |
| 2 | 86216-ABG-200R | MARK I3S COVER FR CENTER (TYPE-1) | 1 | |
| 3 | 86351-ABH-400R | STRIPE FR COVER (TYPE-1) | 1 | |
| 3 | 86351-ABH-400S | STRIPE FR COVER (TYPE-2) | 1 | |
| 3 | 86351-ABH-500R | STRIPE FR COVER (TYPE-1) | 1 | |
| 3 | 86351-ABH-200T | STRIPE FR COVER (TYPE-3) | 1 | |
| 4 | 86352-ABH-500T | STRIPE B R FR COVER (TYPE-3) | 1 | |
| 4 | 86352-ABH-500S | STRIPE B R FR COVER (TYPE-2) | 1 | |
| 4 | 86352-ABH-500R | STRIPE B R FR COVER (TYPE-1) | 1 | |
| 4 | 86352-ABH-5002 | STRIPE B R FR COVER (TYPE-4) | 1 | |
| 5 | 86353-ABH-500T | STRIPE B L FR COVER (TYPE-3) | 1 | |
| 5 | 86353-ABH-500S | STRIPE B L FR COVER (TYPE-2) | 1 | |
| 5 | 86353-ABH-500R | STRIPE B L FR COVER (TYPE-1) | 1 | |
| 5 | 86353-ABH-5002 | STRIPE B L FR COVER (TYPE-4) | 1 | |
| 6 | 86532-ABH-500T | STRIPE COVER HANDLE TOP (TYPE-3) | 1 | |
| 6 | 86532-ABH-500S | STRIPE COVER HANDLE TOP (TYPE-2) | 1 | |
| 6 | 86532-ABH-500R | STRIPE COVER HANDLE TOP (TYPE-1) | 1 | |
| 6 | 86532-ABH-5002 | STRIPE COVER HANDLE TOP (TYPE-4) | 1 | |
| 7 | 86782-ABH-400R | STRIPE COVER FR CENTER A, R SIDE (TYPE-1) | 1 | |
| 7 | 86782-ABH-400S | STRIPE COVER FR CENTER A, R SIDE (TYPE-2) | 1 | |
| 7 | 86782-ABH-500R | STRIPE COVER FR CENTER A R SIDE | 1 | |
| 7 | 86782-ABH-5002 | STRIPE COVER FR CENTER A R SIDE (TYPE-2) | 1 | |
| 8 | 86783-ABH-400R | STRIPE COVER FR CENTER A, L SIDE (TYPE-1) | 1 | |
| 8 | 86783-ABH-400S | STRIPE COVER FR CENTER A, L SIDE (TYPE-2) | 1 | |
| 8 | 86783-ABH-500R | STRIPE COVER FR CENTER A L SIDE | 1 | |
| 8 | 86783-ABH-5002 | STRIPE COVER FR CENTER A L SIDE (TYPE-2) | 1 | |
| 9 | 86784-ABH-500T | STRIPE A R BODY COVER (TYPE-3) | 1 | |
| 9 | 86784-ABH-500S | STRIPE A R BODY COVER (TYPE-2) | 1 | |
| 9 | 86784-ABH-500R | STRIPE A R BODY COVER (TYPE-1) | 1 | |
| 9 | 86784-ABH-5002 | STRIPE A R BODY COVER (TYPE-4) | 1 | |
| 10 | 86785-ABH-500T | STRIPE A L BODY COVER (TYPE-3) | 1 | |
| 10 | 86785-ABH-500S | STRIPE A L BODY COVER (TYPE-2) | 1 | |
| 10 | 86785-ABH-500R | STRIPE A L BODY COVER (TYPE-1) | 1 | |
| 10 | 86785-ABH-5002 | STRIPE A L BODY COVER (TYPE-4) | 1 | |
| 11 | 86788-ABH-500T | STRIPE C R BODY COVER (TYPE-3) | 1 | |
| 11 | 86788-ABH-500S | STRIPE C R BODY COVER (TYPE-2) | 1 | |
| 11 | 86788-ABH-500R | STRIPE C R BODY COVER (TYPE-1) | 1 | |
| 11 | 86788-ABH-5002 | STRIPE C R BODY COVER (TYPE-4) | 1 | |
| 12 | 86789-ABH-500T | STRIPE C L BODY COVER (TYPE-3) | 1 | |
| 12 | 86789-ABH-500S | STRIPE C L BODY COVER (TYPE-2) | 1 | |
| 12 | 86789-ABH-500R | STRIPE C L BODY COVER (TYPE-1) | 1 | |
| 12 | 86789-ABH-5002 | STRIPE C L BODY COVER (TYPE-4) | 1 | |
| 13 | 86881-ABH-500T | STRIPE FENDER FR. (TYPE-3) | 1 | |
| 13 | 86881-ABH-500S | STRIPE FENDER FR. (TYPE-2) | 1 | |
| 13 | 86881-ABH-500R | STRIPE FENDER FR. (TYPE-1) | 1 | |
| 13 | 86881-ABH-5002 | STRIPE FENDER FR. (TYPE-4) | 1 | |
| 14 | 61141-ABH-500 | HERO DOMING STICKER | 1 | |
| 15 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 16 | 86833-ABG-200 | EMBLEM R BODY COVER | 1 | |
| 17 | 86834-ABG-200 | EMBLEM L BODY COVER | 1 | |
| 22 | 86830-ABW-800 | EMBLEM WINDSCREEN SUB. ASSY. | 1 | |
