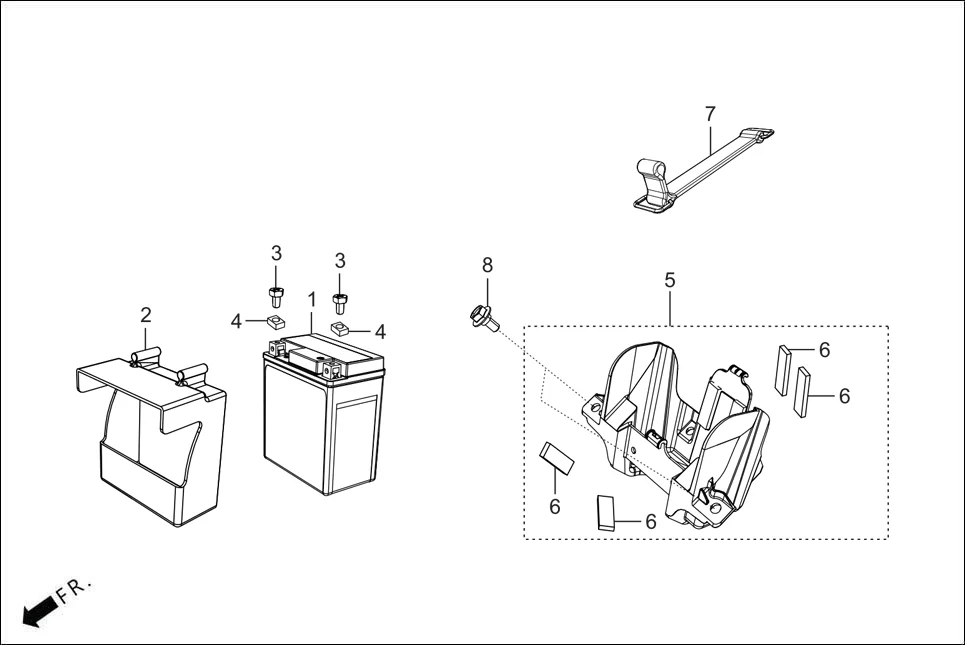

F-24A-BATTERY ASSY.
HeroKARIZMA FIGHTER EDITION(MAY, 2025) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KRY-971 | BATTERY ASSY ETZ7 | 1 | |
| 2 | 50324-ACA-001 | BAND BATTERY LIFTER | 1 | |
| 3 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 4 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 5 | ACAAF2A001000G | BOX BATTERY ASSY | 1 | |
| 6 | 83403-AAB-A000-21 | CUSHION BATTERY 2 | 4 | |
| 7 | 50327-AAB-A00 | BAND BATTERY | 1 | |
| 8 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 |
