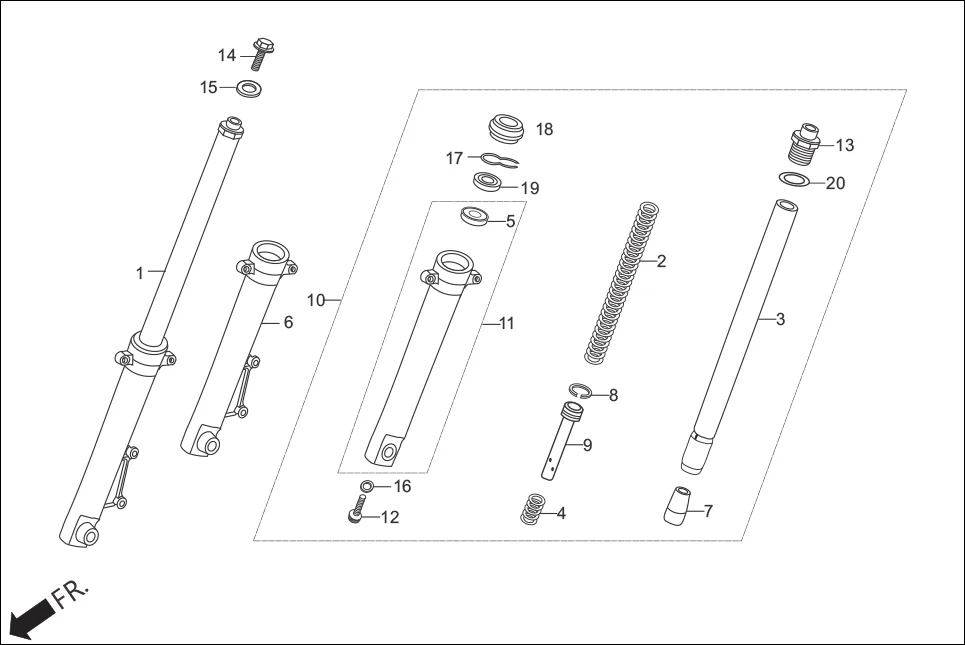

F-7 - FRONT FORK
Hero Hunk (Nov, 2015) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-AAK-100 | FORK ASSY R FRONT | 1 | |
| 2 | 51401-KSP-901 | SPRING, FRONT FORK | 2 | |
| 3 | 51410-KVN-901 | PIPE COMP., FR. FORK | 2 | |
| 4 | 51412-KSP-901 | SPRING, REBOUND | 2 | |
| 5 | 51412-KFN-851 | SPRING, BACK UP | 2 | |
| 6 | 51420-AAB-000 | CASE COMP R FR BOTTOM | 1 | |
| 7 | 51432-KFN-851 | PIECE, OIL LOCK | 2 | |
| 8 | 51437-KVN-901 | RING, PISTON | 2 | |
| 9 | 51440-KVN-901 | PIPE, SEAT | 2 | |
| 10 | 51500-AAK-100 | FORK ASSY L FRONT | 1 | |
| 11 | 51520-AAB-000 | CASE COMP L FR BOTTOM | 1 | |
| 12 | 90116-KAG-900 | BOLT, SOCKET, 8 MM | 2 | |
| 13 | 90123-KSP-901 | BOLT, A FRONT FORK | 2 | |
| 14 | 90123-KRM-860 | BOLT, FR. FORK | 2 | |
| 15 | 90521-292-000 | WASHER, PLAIN, 10.3 MM | 2 | |
| 16 | 90544-KFN-851 | WASHER, SPECIAL, 8MM | 2 | |
| 17 | 90601-KFN-851 | RING, OIL SEAL STOP | 2 | |
| 18 | 91254-GAA-003R | SEAL, DUST | 2 | |
| 19 | 91255-KRM-852 | SEAL OIL 31X43X10.3 | 2 | |
| 20 | 91356-KAG-900 | O - RING | 2 | |
