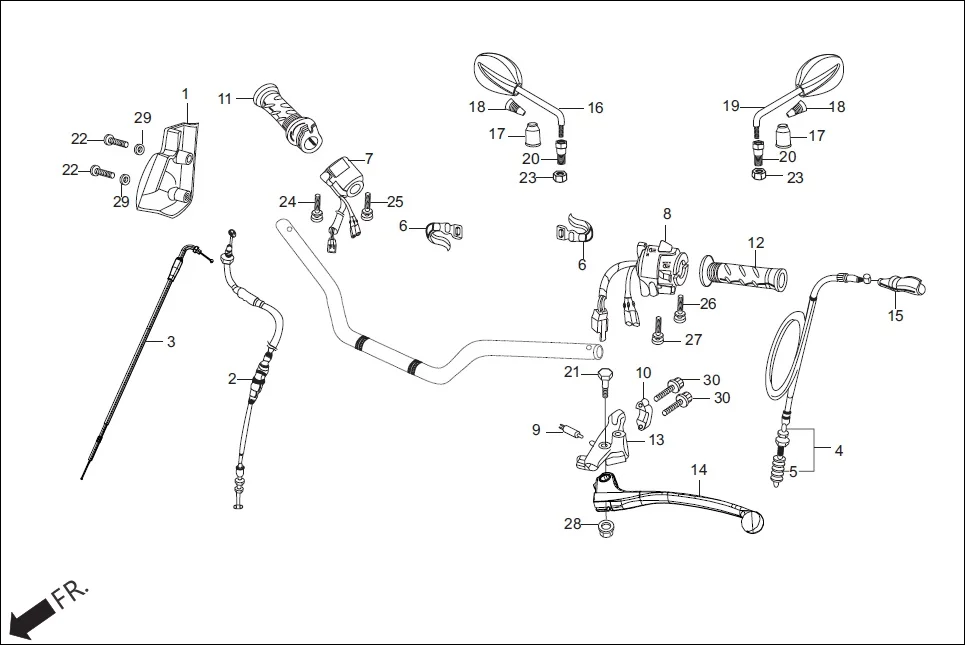

F-3-HANDLE LEVER / SWITCH/CABLES
HeroHunk (Nov, 2015) · 44 parts
Parts in This Assembly (44)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16150-KTN-700H | COVER THROTTLE CABLE | 1 | |
| 2 | 17910-KVN-900 | CABLE COMP., THROT | 1 | |
| 3 | 17950-AAK-100 | CABLE COMP., CHOKE | 1 | |
| 4 | 22870-KVN-900 | CABLE COMP., CLUTCH | 1 | |
| 5 | 22871-KTN-700 | BOOT, CLUTCH CABLE | 1 | |
| 6 | 32161-404-000 | BAND B-1,WIRE | 2 | |
| 7 | 35150-KVN-971 | SW.ASSY.LT.ST. | 1 | |
| 8 | 35200-KVN-971 | SW ASSY WINKER | 1 | |
| 9 | 35330-413-003 | SW. COMP., FR. LEVER | 1 | |
| 10 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 11 | 53140-KFN-850 | GRIP COMP., THROTTLE | 1 | |
| 12 | 53166-KFN-850 | GRIP, L HANDLE | 1 | |
| 13 | 53172-KRC-900 | BRACKET, HANDLE LEVER | 1 | |
| 14 | 53178-KFN-850 | LEVER COMP., L HANDLE | 1 | |
| 15 | 53182-KFN-850 | BOOT, L HANDLE LEVER | 1 | |
| 16 | 88110-AAK-H01ZA | MIRROR ASSY R BACK (PBME,NH-B08M) | 1 | |
| 16 | 88110-AAK-H01ZB | MIRROR ASSY R BACK(EGM,NH-A63M) | 1 | |
| 16 | 88110-AAK-H01ZC | MIRROR ASSY R BACK(FSM,NH-411M) | 1 | |
| 16 | 88110-AAK-100U | MIRROR ASSY R BACK(MBK NH-105) | 1 | |
| 16 | 88110-AAK-H01ZD | MIRROR ASSY R BACK(PHG,GY-136P) | 1 | |
| 16 | 88110-AAK-H01ZE | MIRROR ASSY R BACK(CBR,R-195C) | 1 | |
| 16 | 88110-AAK-H01ZF | MIRROR ASSY R BACK(MBM,YR-305M) | 1 | |
| 16 | 88110-AAK-H70Y | MIRROR ASSY R BACK(PFW,NH341P) | 1 | |
| 17 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 18 | 88115-KTR-900 | BOOT, MIRROR UPPER | 2 | |
| 19 | 88120-AAK-H01ZA | MIRROR ASSY L BACK (PBME,NH-B08M) | 1 | |
| 19 | 88120-AAK-H01ZB | MIRROR ASSY L BACK(EGM,NH-A63M) | 1 | |
| 19 | 88120-AAK-H01ZC | MIRROR ASSY L BACK(FSM,NH-411M) | 1 | |
| 19 | 88120-AAK-100U | MIRROR ASSY L BACK(MBK NH-105) | 1 | |
| 19 | 88120-AAK-H01ZD | MIRROR ASSY L BACK(PHG,GY-136P) | 1 | |
| 19 | 88120-AAK-H01ZE | MIRROR ASSY L BACK(CBR,R-195C) | 1 | |
| 19 | 88120-AAK-H01ZF | MIRROR ASSY L BACK(MBM,YR-305M) | 1 | |
| 19 | 88120-AAK-H70Y | MIRROR ASSY L BACK(PFW,NH341P) | 1 | |
| 20 | 90003-KCC-840 | BOLT, ADPT.10MM | 2 | |
| 21 | 90113-438-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 22 | 90140-KAE-000 | SCREW, PAN, 4 X 28 | 2 | |
| 23 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 24 | 93892-05020-07 | SCREW, WASHER, 5X20 | 1 | |
| 25 | 93892-05025-07 | SCREW, WASHER, 5X25 | 1 | |
| 26 | 93892-05035-07 | SCREW, WASHER, 5X35 | 1 | |
| 27 | 93892-05045-07 | SCREW, WASHER, 5X45 | 1 | |
| 28 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 29 | 94101-04000 | WASHER, PLAIN 4 MM | 2 | |
| 30 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 2 |
