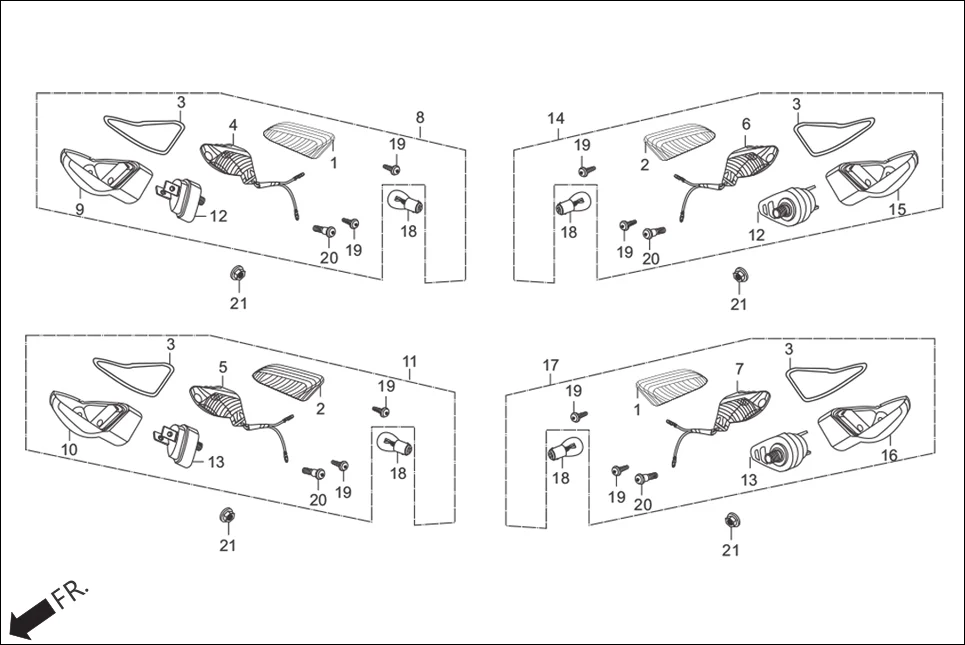

F-22 - WINKER
Hero Hunk (Nov, 2015) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33301-KVN-901 | LENS WINKER A | 2 | |
| 2 | 33302-KVN-901 | LENS WINKER B | 2 | |
| 3 | 33307-KVN-901 | PACKING LENS | 4 | |
| 4 | 3331A-KVN-900 | REFLECTOR COMP. WINKER R. FR. | 1 | |
| 5 | 3331B-KVN-900 | REFLECTOR COMP. WINKER L. FR. | 1 | |
| 6 | 3331C-KVN-900 | REFLECTOR COMP. WINKER R. RR. | 1 | |
| 7 | 3331D-KVN-900 | REFLECTOR COMP. WINKER L. FR. | 1 | |
| 8 | 3340A-KVN-901 | WINKER, ASSY. R. FR. (UNITECH) | 1 | |
| 9 | 33412-KVN-901 | BASE, COMP. R WINKER | 1 | |
| 10 | 33452-KVN-901 | BASE, COMP. L WINKER | 1 | |
| 11 | 3345A-KVN-901 | WINKER, ASSY., L FR. (UNITECH) | 1 | |
| 12 | 33605-KVN-901 | STAY COMP., WINKER A | 2 | |
| 13 | 33606-KVN-901 | STAY, COMP., WINKER B | 2 | |
| 14 | 3360A-KVN-901 | WINKER, ASSY. R. RR (UNITECH) | 1 | |
| 15 | 33612-KVN-901 | BASE, COMP R WINKER | 1 | |
| 16 | 33652-KVN-901 | BASE, COMP L WINKER | 1 | |
| 17 | 3365A-KVN-901 | WINKER ASSY., L RR. (UNITECH) | 1 | |
| 18 | 34930-AAC-700 | BULB(12V 10W) AMBER | 4 | |
| 19 | 90104-KVN-900 | SCREW , TAPPING M3X15 | 8 | |
| 20 | 90380-MB2-000 | SCREW, SPECIAL, 6 X 8 | 4 | |
| 21 | 94050-10000 | NUT, FLANGE, 10MM | 4 | |
