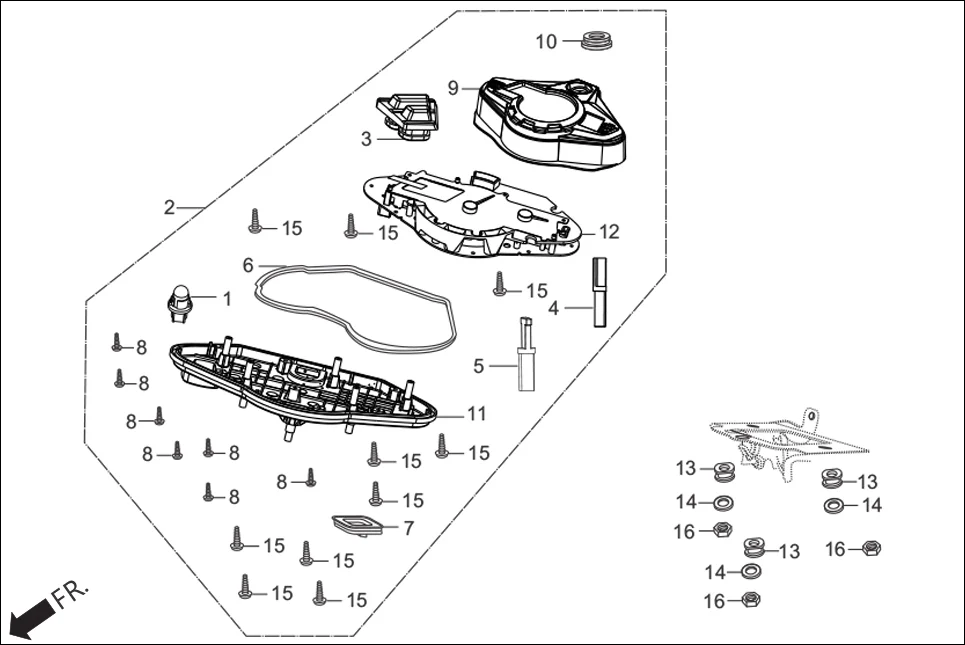

F-2 - SPEEDOMETER / CABLE
Hero Hunk (Nov, 2015) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35505-KVN-971 | BULB SOCKET ASSY. | 1 | |
| 2 | 37100-AAK-100 | METER ASSY COMB | 1 | |
| 3 | 37101-KVN-971 | SELECT & RESET GROMMET | 1 | |
| 4 | 37213-KVN-971 | SELECT KNOB | 1 | |
| 5 | 37214-KVN-971 | RESET KNOB | 1 | |
| 6 | 37215-KVN-971 | SEALING GASKET | 1 | |
| 7 | 37216-KVN-971 | BULB GROMMET | 1 | |
| 8 | 37217-KVN-971 | SCREW TAPPING 3X11 | 7 | |
| 9 | 37300-AAK-100 | CASE UPPER ASSY | 1 | |
| 10 | 37312-KVN-971 | GROMMET IGNITION | 1 | |
| 11 | 37400-AAK-100 | CASE LOWER ASSY | 1 | |
| 13 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 14 | 90525-030-000 | WASHER, PLAIN | 3 | |
| 15 | 93901-42480 | SCREW TAPPING 3X16 | 10 | |
| 16 | 94001-06000-0S | NUT, HEX., 6 MM | 3 | |
