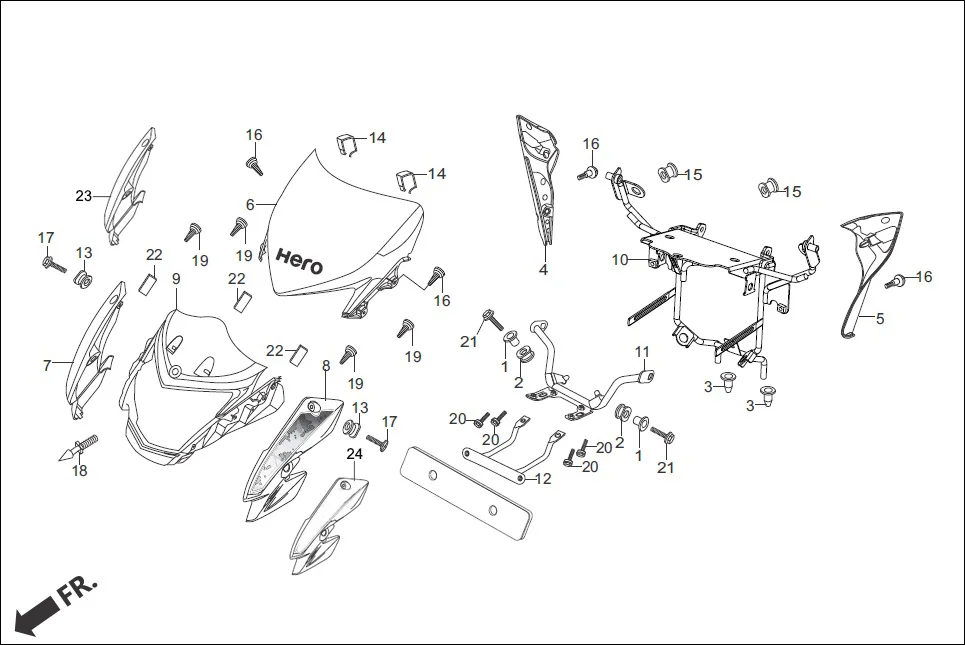

F-1A - FRONT COWL /STAY
Hero Hunk (Nov, 2015) · 36 parts
Parts in This Assembly (36)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19052-KV0-000 | COLLAR, RADIATOR MTG | 2 | |
| 2 | 50451-GB6-920 | RUBBER, TAIL LIGHT SET | 2 | |
| 3 | 61312-KCT-690 | BOOT, HEAD LIGHT STAY | 2 | |
| 4 | 61330-KVN-900 | PANEL, R SIDE | 1 | |
| 5 | 61340-KVN-900 | PANEL, L SIDE | 1 | |
| 6 | 64100-AAK-100 | SET, WIND SCREEN | 1 | |
| 7 | 64200-AAK-100R | SET R COWL FR SIDE(PNB NH-B08M) | 1 | |
| 7 | 64200-AAK-100S | SET R COWL FR SIDE(EGM NH-A63M) | 1 | |
| 7 | 64200-AAK-100T | SET R COWL FR SIDE(FSM NH-411M) | 1 | |
| 7 | 64200-AAK-100U | SET R COWL FR SIDE(MBK NH-105) | 1 | |
| 7 | 64200-AAK-100V | SET R COWL FR SIDE(CBR R-195C) | 1 | |
| 7 | 64200-AAK-100W | SET R COWL FR SIDE(MBM YR-305M) | 1 | |
| 7 | 64200-AAK-100X | SET R COWL FR SIDE(PHG GY-136P) | 1 | |
| 7 | 64200-AAK-100Z | SET R COWL FR SIDE(PFW NH-341P) | 1 | |
| 8 | 64300-AAK-100R | SET L COWL FR SIDE(PNB NH-B08M) | 1 | |
| 8 | 64300-AAK-100S | SET L COWL FR SIDE(EGM NH-A63M) | 1 | |
| 8 | 64300-AAK-100T | SET L COWL FR SIDE(FSM NH-411M) | 1 | |
| 8 | 64300-AAK-100U | SET L COWL FR SIDE(MBK NH-105) | 1 | |
| 8 | 64300-AAK-100V | SET L COWL FR SIDE(CBR R-195C) | 1 | |
| 8 | 64300-AAK-100W | SET L COWL FR SIDE(MBM YR-305M) | 1 | |
| 8 | 64300-AAK-100X | SET L COWL FR SIDE(PHG GY-136P) | 1 | |
| 8 | 64300-AAK-100Z | SET L COWL FR SIDE(PFW NH-341P) | 1 | |
| 9 | 64206-KVN-970 | COWL,FR CENTER | 1 | |
| 10 | 64312-KVN-970 | STAY COMP , FR. COWL | 1 | |
| 11 | 64313-KVN-900 | STAY COMP., FR. WINKER | 1 | |
| 12 | 64315-KVN-900 | STAY FR., NUMBER PLATE | 1 | |
| 13 | 64316-KVN-900 | RUBBER, FR., COWL MT | 2 | |
| 14 | 77247-KVN-900 | RUBBER, STOPPER | 2 | |
| 15 | 83551-376-000 | GROMMET, SIDE COVER | 2 | |
| 16 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
| 17 | 90105-KVN-900 | BOLT, SPECIAL 6 X 22 | 2 | |
| 18 | 90899-KVN-900 | PLUG, CORN | 1 | |
| 19 | 93903-34380 | SCREW, TAPPING, 4X12 | 4 | |
| 20 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 4 | |
| 21 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 22 | 77246-KVN-900 | RUBBER FR | 3 | |
