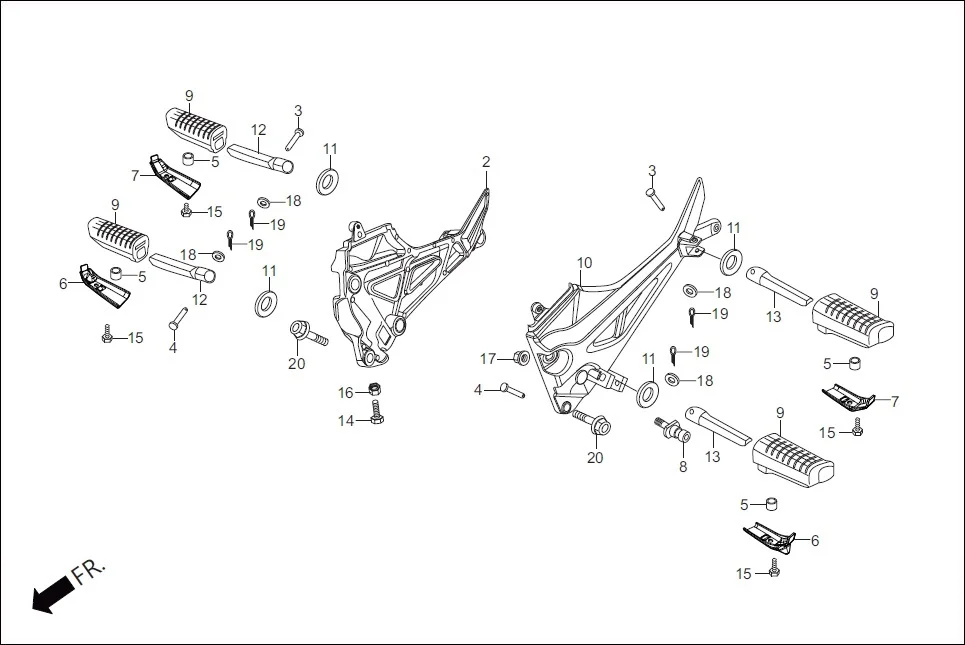

F-17-DRUM - STEP PILLION
Hero Hunk (Nov, 2015) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 50600-KVN-900Z | HOLDER, R STEP(MGM) | 1 | |
| 3 | 50603-KFN-850 | PIN, STEP BAR JOINT | 2 | |
| 4 | 50603-KVE-900 | PIN, STEP BAR JOINT | 2 | |
| 5 | 50618-KE8-000 | COLLAR, 6.5 X 11 X 3 | 4 | |
| 6 | 50619-KFN-850 | PLATE, STEP LOWER | 2 | |
| 7 | 50619-KTN-700 | PLATE, STEP LOWER | 2 | |
| 8 | 50643-KCT-690 | PIVOT,CHANGE PEDAL | 1 | |
| 9 | 50661-KVN-900 | RUBBER, M STEP | 4 | |
| 10 | 50700-KVN-900Z | HOLDER, L STEP(MGM) | 1 | |
| 11 | 50715-KVN-900 | WASHER P. STEP | 4 | |
| 12 | 50717-KFN-850 | BAR R PILLION STEP | 2 | |
| 13 | 50718-KFN-850 | BAR L PILLION STEP | 2 | |
| 14 | 90001-KFN-850 | BOLT,PEDAL BRAKE STOPPER | 1 | |
| 15 | 92101-06012-0G | BOLT, HEX 6 X 12 | 4 | |
| 16 | 94001-06000-0S | NUT, HEX., 6 MM | 1 | |
| 17 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 18 | 94102-08000 | WASHER, PLAIN, 8MM | 4 | |
| 19 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 4 | |
