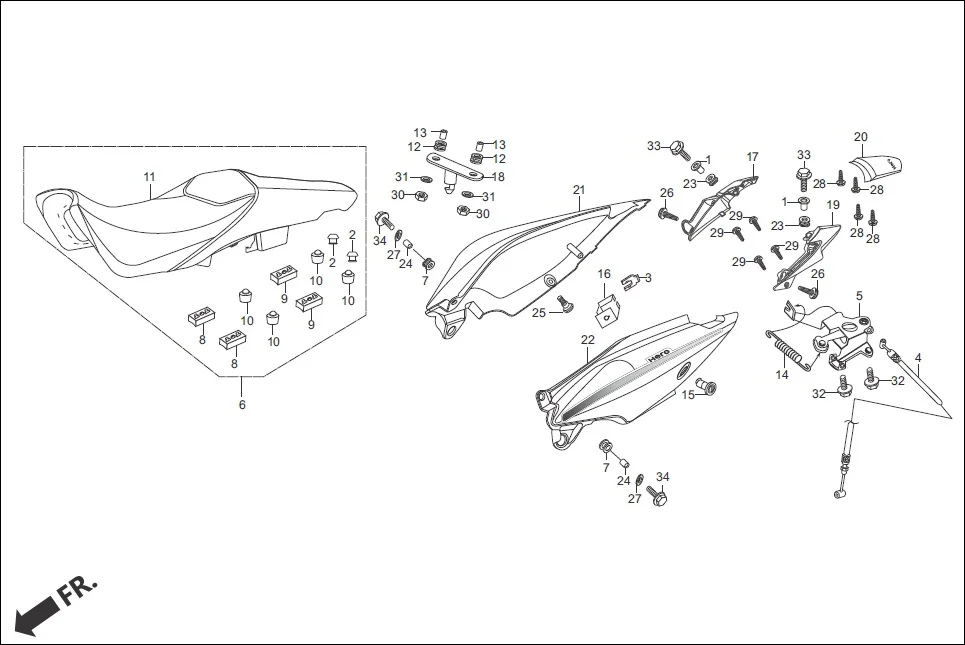

F-12 - SEAT ASSY. /COWL
Hero Hunk (Nov, 2015) · 48 parts
Parts in This Assembly (48)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19052-KV0-000 | COLLAR, RADIATOR MTG | 2 | |
| 2 | 50354-428-000 | STOPPER,RUBBERB | 2 | |
| 3 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 4 | 77156-KVN-970 | CABLE,SEAT LOCK | 1 | |
| 5 | 77160-KVN-970 | BRKT COMP SEAT LOCK | 1 | |
| 6 | 77200-KVN-900 | SEAT, COMP, DOUBLE | 1 | |
| 7 | 77202-KCC-900 | RUBBER, SEAT MOUNTING | 2 | |
| 8 | 77204-KCC-900 | RUBBER, `A SEAT SETTING | 2 | |
| 9 | 77205-KVE-900 | RUBBER, B SEAT SETTING | 2 | |
| 10 | 77206-KFN-850 | RUBBER SEAT CUSHION | 4 | |
| 11 | 7720B-KVN-900 | COVER, SEAT ASSY. | 1 | |
| 12 | 77228-GBG-850 | RUBBER SEAT LOCK BAR | 2 | |
| 13 | 77229-GBG-850 | COLLER SEAT LOCK BAR | 2 | |
| 14 | 77234-KVN-900 | SPRING, SEAT LOCK | 1 | |
| 15 | 77239-AAL-H00 | KEY SEAT LOCK | 1 | |
| 16 | 77244-KVN-900 | STAY, SEAT LOCK CABLE | 1 | |
| 17 | 77250-KVN-900 | BASE R, REAR COWL (MBL) | 1 | |
| 18 | 77260-KVE-900 | BAR ASSY. SEAT LOCK | 1 | |
| 19 | 77260-KVN-900H | BASE L, REAR COWL (MBL) | 1 | |
| 20 | 77280-AAK-100 | SET RR CENTRE COWL | 1 | |
| 21 | 77315-AAK-100R | SET R RR COWL(PNB NH-B08M) | 1 | |
| 21 | 77315-AAK-100S | SET R RR COWL(EGM NH-A63M) | 1 | |
| 21 | 77315-AAK-100T | SET R RR COWL(FSM NH-411M) | 1 | |
| 21 | 77315-AAK-100U | SET R RR COWL(MBK NH-105) | 1 | |
| 21 | 77315-AAK-100V | SET R RR COWL(CBR R-195C) | 1 | |
| 21 | 77315-AAK-100W | SET R RR COWL(MBM YR-305M) | 1 | |
| 21 | 77315-AAK-100X | SET R RR COWL(PHG GY-136P) | 1 | |
| 21 | 77315-AAK-100Z | SET R RR COWL(PFW NH-341P) | 1 | |
| 22 | 77325-AAK-100R | SET L RR COWL(PNB NH-B08M) | 1 | |
| 22 | 77325-AAK-100S | SET L RR COWL(EGM NH-A63M) | 1 | |
| 22 | 77325-AAK-100T | SET L RR COWL(FSM NH-411M) | 1 | |
| 22 | 77325-AAK-100U | SET L RR COWL(MBK NH-105) | 1 | |
| 22 | 77325-AAK-100V | SET L RR COWL(CBR R-195C) | 1 | |
| 22 | 77325-AAK-100W | SET L RR COWL(MBM YR-305M) | 1 | |
| 22 | 77325-AAK-100X | SET L RR COWL(PHG GY-136P) | 1 | |
| 22 | 77325-AAK-100Z | SET L RR COWL(PFW NH-341P) | 1 | |
| 23 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 24 | 84702-KCC-900 | COLLAR, STAY NO. PLATE SET | 2 | |
| 25 | 90101-087-720 | SCREW, HEAD LIGHT SET | 1 | |
| 26 | 90103-KVN-900 | SCREW, PAN 5 X 13.5 | 2 | |
| 27 | 90563-355-000 | WASHER, WHEEL, 6 MM | 2 | |
| 28 | 93903-34380 | SCREW, TAPPING, 4X12 | 4 | |
| 29 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 4 | |
| 30 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
| 31 | 94103-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 32 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 33 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 34 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
