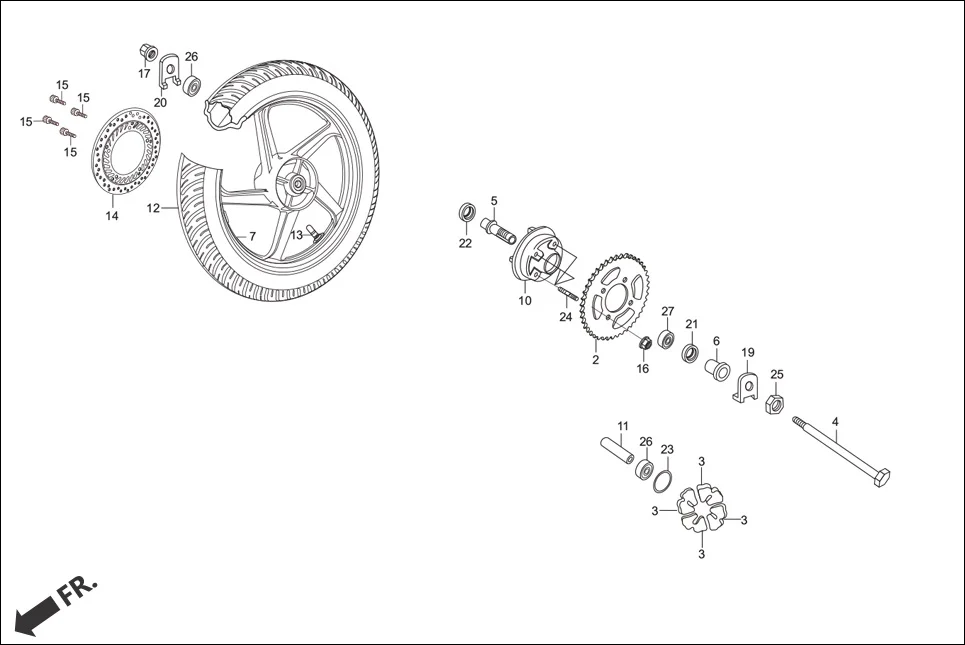

F-11-DISC-REAR WHEEL
HeroHunk (Nov, 2015) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 41201-KVN-970 | SPROCKET,FINAL DRIVEN 43T | 1 | |
| 3 | 41241-KSP-900 | DAMPER, RR WHEEL | 4 | |
| 4 | 42301-KVE-900 | AXLE,RR.WHEEL | 1 | |
| 5 | 42303-KRY-931 | SLEEVE, REAR WHEEL | 1 | |
| 6 | 42311-KVE-900 | COLLAR, RR WHEEL SIDE | 1 | |
| 7 | K42426AARAH80S | KIT, WHEEL COMP. REAR | 1 | |
| 10 | 42611-KVN-970 | FLANGE,FINAL DRIVEN | 1 | |
| 11 | 42620-KSP-900 | COLLAR, REAR AXLE DISTANCE | 1 | |
| 12 | 42711-KRY-971 | TYRE,RR | 1 | |
| 13 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 14 | 43251-KVN-971 | DISC,RR BRAKE | 1 | |
| 15 | 90105-KL8-741 | BOLT, FR.DISK, 8 X 24 | 4 | |
| 16 | 90304-KCS-920 | NUT`U 10 MM | 4 | |
| 17 | 90305-KVN-900 | NUT, FLG. PT. 14 MM | 1 | |
| 19 | 90559-KRY-970 | WASHER, L RR AXLE | 1 | |
| 20 | 90560-KVN-970 | WASHER R RR AXLE | 1 | |
| 21 | 91253-KSP-901 | DUST SEAL, 30 X 47 X 8 | 1 | |
| 22 | 91257-230-003 | OIL SEAL 28X42X7 | 1 | |
| 23 | 91352-KSP-900 | O RING, 51 X 2 | 1 | |
| 24 | 92915-10025-0E | BOLT, STUD II, 10X25 | 4 | |
| 25 | 95020-15100 | NUT `E STEM | 1 | |
| 26 | 96140-63020-10 | BRG., BALL RADIAL, 6302 (U) | 2 | |
| 27 | 96150-60050-10 | BEARING, BALL RADIAL, 6005 | 1 |
