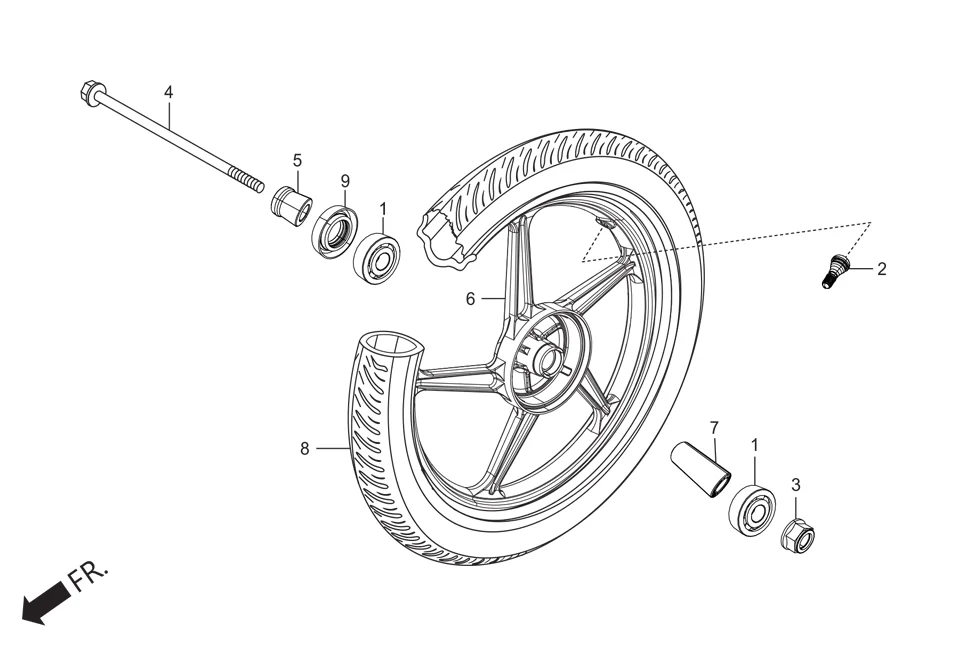

F-9-FRONT WHEEL
HeroHF DELUXE BLACK (HMCM) OBD2_PHB(July,2025) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 2 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 3 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 3 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 4 | 44301-KTR-700 | AXLE, FR. WHEEL | 1 | |
| 5 | 44311-KRC-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 6 | 44601-AAF-031 | WHEEL COMP FRONT | 1 | |
| 6 | 44601-ABA-203 | WHEEL COMP FRONT | 1 | |
| 6 | 44601-ABA-204 | WHEEL COMP FRONT | 1 | |
| 6 | 44601-AAE-A01 | WHEEL COMP FRONT | 1 | |
| 6 | 44601-AAF-030 | WHEEL COMP FR | 1 | |
| 7 | 44620-400-000 | COLLAR, FRONT DISTANCE | 1 | |
| 9 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 |
