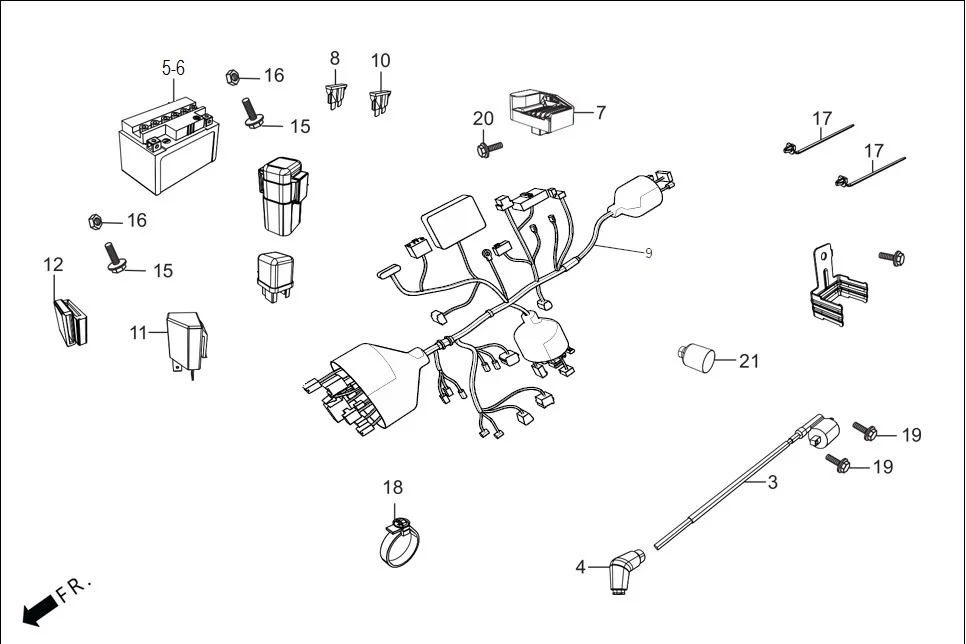

F-24-KICK-WIRE HARNESS/BATTERY
HeroHF-Deluxe(March,2023) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 3 | 30510-ACK-00099 | COIL ASSY., IGN. | 1 | |
| 4 | 30700-ACK-00099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31500-KVT-801 | BATTERY, ASSY. | 1 | |
| 6 | 31500-KWS-801 | BATTERY ASSY., MF3-BS | 1 | |
| 6 | 31500-KWS-901 | BATTERY ASSY | 1 | |
| 6 | 31500-ACK-B31 | BATTERY ASSY 3AH | 1 | |
| 7 | 31600-AAE-B01 | REG. RECT. COMP | 1 | |
| 7 | 31600-AAW-B01 | REG. RECT. COMP | 1 | |
| 8 | 98200-31500 | BLADE, FUSE, 15A | 1 | |
| 9 | 32100-ACK-E00 | HARNESS, WIRE (KICK) | 1 | |
| 10 | 98200-31000 | BLADE, FUSE 10A | 1 | |
| 11 | 38301-AAE-20099 | RELAY COMP., WINKER | 1 | |
| 12 | 38306-GE7-000 | SUSPENSION, WINKER RELAY | 1 | |
| 15 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 16 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 17 | 91540-AAN-410 | CLIP, BAND HARN | 2 | |
| 18 | 91541-ABG-000 | CLIP BAND | 1 | |
| 19 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 20 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 21 | 32108-KE8-000 | COVER ,CONNECTOR | 1 |
