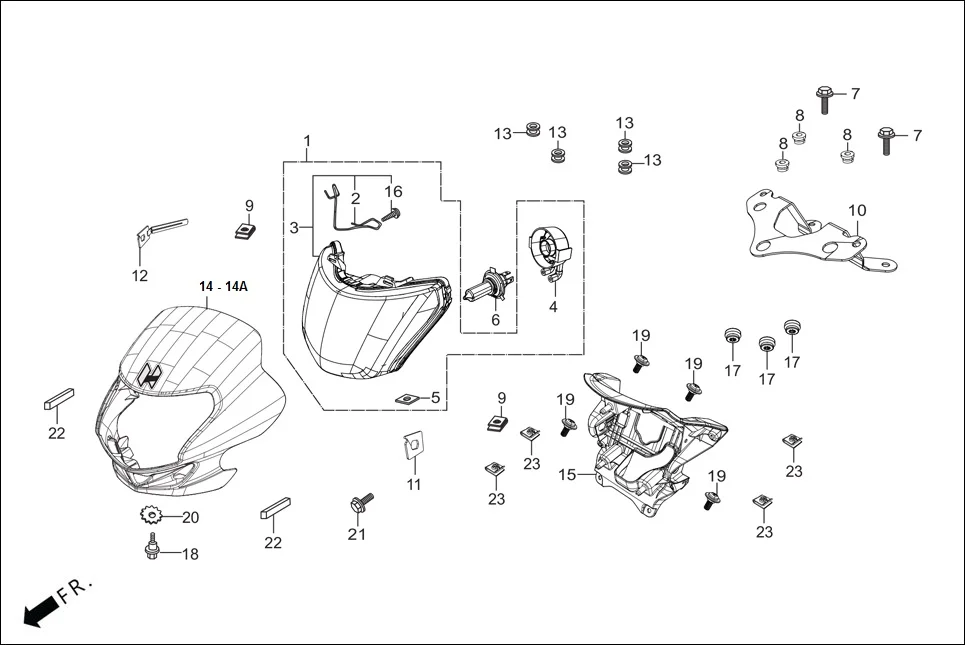

F-1-HEAD LIGHT
HeroHF Deluxe(Jan,2023) · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3310B-AAH-10099 | LIGHT ASSY., HEAD | 1 | |
| 2 | 33108-KRY-900 | SPRING, SPC(BULB HOLDER) | 1 | |
| 3 | 33110-AAH-10099 | UNIT, HEADLIGHT | 1 | |
| 3 | 33110-AAH-A01 | UNIT HEAD LIGHT | 1 | |
| 3 | 33110-AAH-H51 | UNIT HEAD LIGHT | 1 | |
| 3 | 33110-AAH-F01 | UNIT, HEAD LIGHT | 1 | |
| 4 | 33112-KTN-921 | SOCKET COVER | 1 | |
| 5 | 33128-GBL-000 | NUT, SPECIAL | 1 | |
| 6 | 34901-KSP-910 | BULB, HEAD LIGHT | 1 | |
| 7 | 96001-06016-07 | BOLT, FLANGE, SH. 6 X 16 | 2 | |
| 8 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 9 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 10 | 61312-ACK-000 | STAY H/L BRKT. | 1 | |
| 11 | 61314-AAD-220 | STAY WINKER | 1 | |
| 11 | 61314-ACK-400 | STAY WINKER | 1 | |
| 12 | 61313-ACK-000 | STAY WINKER R. | 1 | |
| 13 | 77247-KCC-770 | RUBBER, STOPPER | 4 | |
| 14 | 83400-ACK-011A | SET ILLUST FR VISOR BLACK (TYPE-3) | 1 | |
| 14 | 83400-ACK-011R | SET, FR. VISOR (BLACK NH-1) TYPE-1 | 1 | |
| 14 | 83400-ACK-011Y | SET, FR. VISOR (BLACK NH-1) TYPE-4 | 1 | |
| 14 | 83400-ACK-001R | SET, FR. VISOR (BLACK NH-1) | 1 | |
| 15 | 83402-ACK-000 | PANEL INNER | 1 | |
| 16 | 93901-34210 | SCREW,TAPPING, 4 X 10 | 1 | |
| 16 | 93901-04012-00 | SCREW, TAPPING SPL., 4 X 12 | 1 | |
| 17 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 3 | |
| 18 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
| 19 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
| 20 | 90307-GJ6-000 | WASHER, LOCK, 6 MM | 1 | |
| 21 | 95701-06010-07 | BOLT, FLANGE, 6 X 10 | 1 | |
| 22 | 83403-KST-950 | PROTECTOR FR. VISOR | 2 | |
| 23 | 90320-GC3-000 | NUT, SPRING, M5 | 4 |
