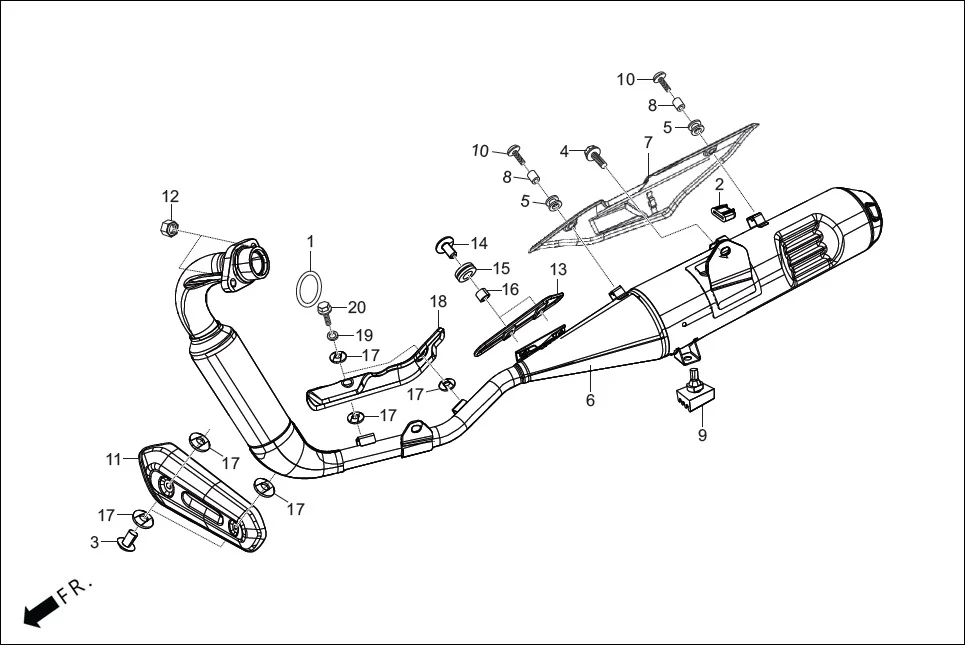

F-16-MUFFLER
HeroGlamour BSVI Techno OBD II(Jan,2023) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18291-AAT-000 | GASKET EX PIPE | 1 | |
| 2 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 1 | |
| 3 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 2 | |
| 4 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 1 | |
| 5 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 6 | 18350-AAN-B02 | MUFFLER COMP EXH | 1 | |
| 7 | 18355-AAN-B02 | COVER, MUFFLER | 1 | |
| 8 | 33619-459-840A | COLLAR,WINKER STAY | 2 | |
| 9 | 50505-KCC-900 | STOPPER RUBBER, A STAND | 1 | |
| 10 | 90107-KAN-900 | BOLT, BODY COVER SET | 2 | |
| 11 | 18331-AAF-400 | COVER CAT PROTECTOR | 1 | |
| 12 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 13 | 18351-AAN-B00 | COVER EXHAUST PIPE | 1 | |
| 14 | 90107-KST-940 | SCREW MUFF. PROTECTOR MOUNT | 2 | |
| 15 | 18345-KST-940 | RUBBER PROTECTOR | 2 | |
| 16 | 17221-KA4-300 | COLLAR CONN TUBE | 2 | |
| 17 | 18292-KTP-900 | PACKING, PROTECTOR | 8 | |
| 18 | 18319-AAN-B02 | PROTECTOR EXH. PIPE | 1 | |
| 19 | 94101-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 20 | 96001-06010-07 | BOLT FLANGE, SH., 6 X 10 | 2 |
