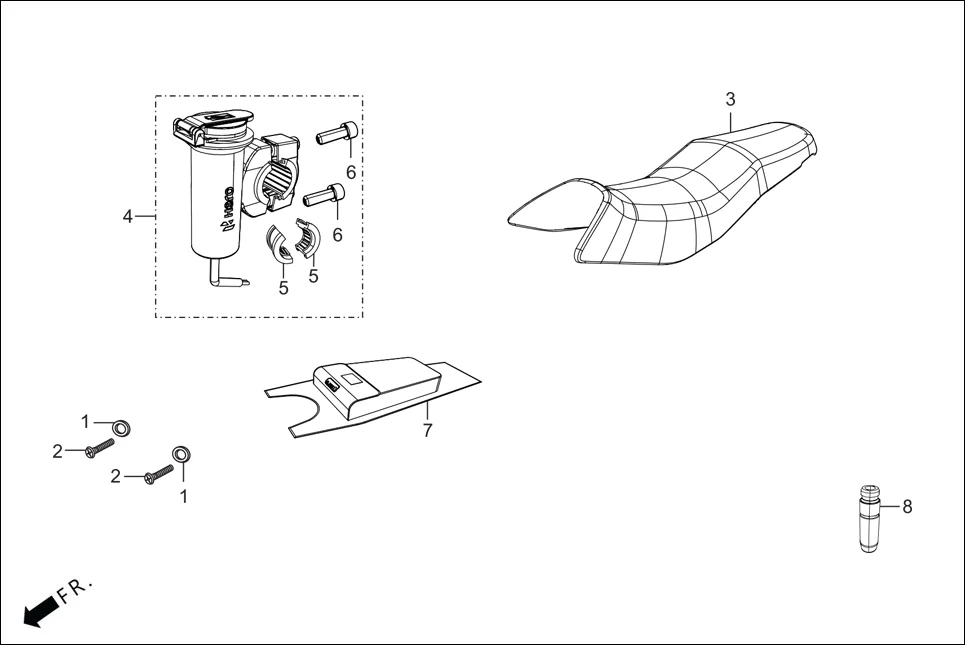

F-29A-COVER SEAT ASSY.(OPTIONAL)
HeroGlamour Canvas(Oct, 2022) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 2 | 93500-05012-1G | SCREW,PAN,5 X 12 | 2 | |
| 3 | 99630-AAN-B00 | COVER ASSY. SEAT | 1 | |
| 3 | 99631-AAN-B00 | COVER ASSY. SEAT | 1 | |
| 3 | 99632-AAN-B00 | COVER ASSY. SEAT | 1 | |
| 3 | 99640-AAN-B00 | COVER ASSY. SEAT | 1 | |
| 4 | 31304-AAM-801 | USB CHARGER | 1 | |
| 5 | 31306-AAE-111 | RUBBER GRIP | 2 | |
| 6 | 96700-05035-10 | BOLT SOCKET 5X35 | 2 | |
| 7 | 99810-AAN-B01 | PREMIUM COVER ASSY FUEL TANK | 1 | |
| 8 | 12204-AAN-305 | GUIDE VALVE OVER SIZE | 1 |
