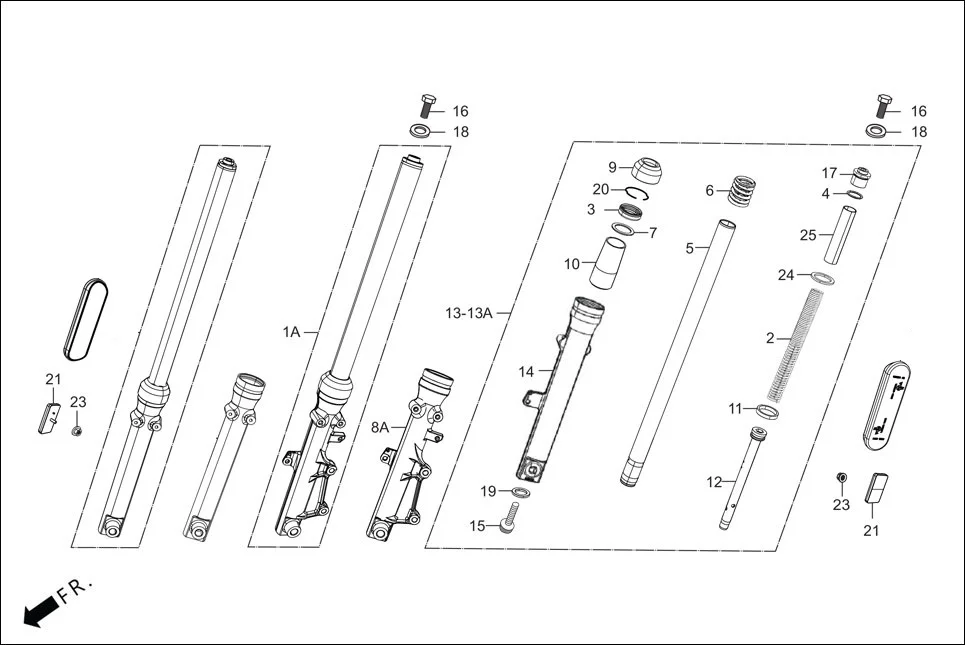

F-7-DISC - FRONT FORK
Hero GLAMOUR 125CC FV BSVI(Aug,2023) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-AAN-E00 | FORK ASSY,R FRONT (DISC) | 1 | |
| 2 | 51401-KST-941 | SPRING, FR. CUSHION | 2 | |
| 3 | 91255-169-000R | OIL SEAL, 30 X 42 X 11 | 2 | |
| 4 | 91356-KAG-900 | O - RING | 2 | |
| 5 | 51410-KWA-941 | PIPE COMP. FR. FORK | 2 | |
| 6 | 51412-KAG-900 | SPRING, REBOUND | 2 | |
| 7 | 51412-KWA-941 | RING BACKUP | 2 | |
| 8 | 51420-AAN-E00 | CASE COMP,R FR BOTTOM (DISC) | 1 | |
| 9 | 51425-KST-901 | SEAL, DUST | 2 | |
| 10 | 51432-KST-901 | PIECE, OIL LOCK | 2 | |
| 11 | 51437-KVN-901 | RING, PISTON | 2 | |
| 12 | 51440-KTR-901 | PIPE, SEAT | 2 | |
| 13 | 51500-AAN-E00 | FORK ASSY,L FRONT (DISC) | 1 | |
| 14 | 51520-AAN-E00 | CASE COMP,L FR BOTTOM (DISC) | 1 | |
| 15 | 90116-KAG-900 | BOLT, SOCKET, 8 MM | 2 | |
| 16 | 90123-KRM-860 | BOLT, FR. FORK | 2 | |
| 17 | 90123-KST-941 | BOLT, A FR. FORK | 2 | |
| 18 | 90521-292-000 | WASHER, PLAIN, 10.3 MM | 2 | |
| 19 | 90544-KFN-851 | WASHER, SPECIAL, 8MM | 2 | |
| 19 | 90544-439-930 | WASHER, SPECIAL, 8 MM | 2 | |
| 20 | 90601-GF5-730 | RING, OIL SEAL STOPPER | 2 | |
| 21 | 33740-AAB-000 | REFLEX REFLECTOR FRONT | 2 | |
| 23 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 24 | 51403-447-730 | JOINT, SPRING | 1 | |
| 25 | 51403-KCC-900 | COLLAR, SPRING | 1 | |
