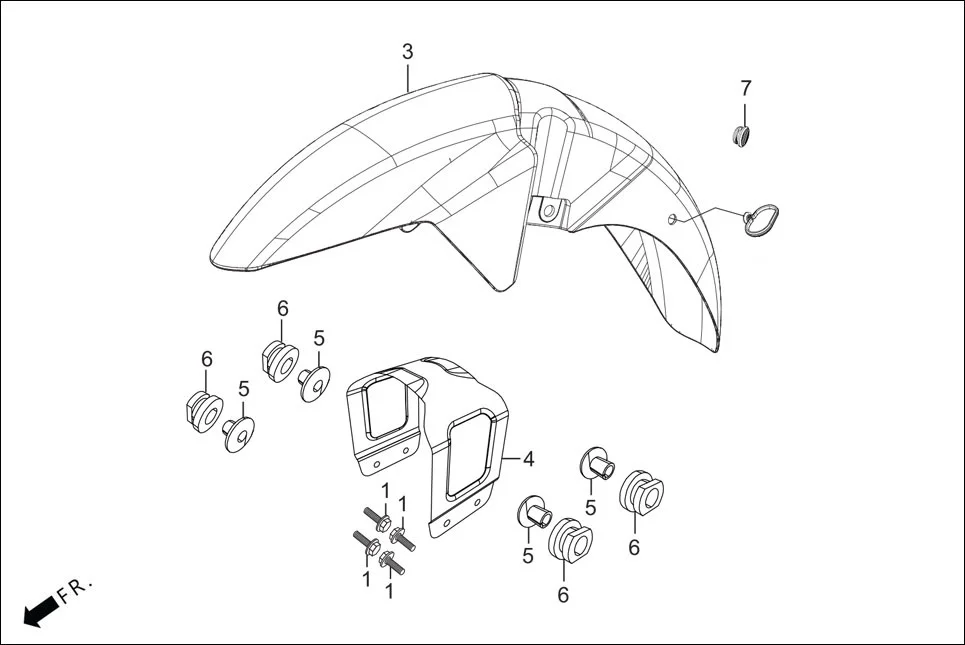

F-6-DISC - FRONT FENDER
Hero GLAMOUR 125CC FV BSVI(Aug,2023) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 3 | 61100-AAN-B00R | FENDER FRONT (BLACK (TYPE-1) NH-1) | 1 | |
| 3 | 61100-ACL-D00X | FENDER FRONT CBR R 195C | 1 | |
| 4 | 61102-AAN-410 | STAY FRONT FENDER | 1 | |
| 5 | 90502-KEZ-900 | COLLAR, RUBBER CUSHION | 4 | |
| 6 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 4 | |
| 7 | 90862-AAB-300 | PLUG,FLY SCREEN | 1 | |
