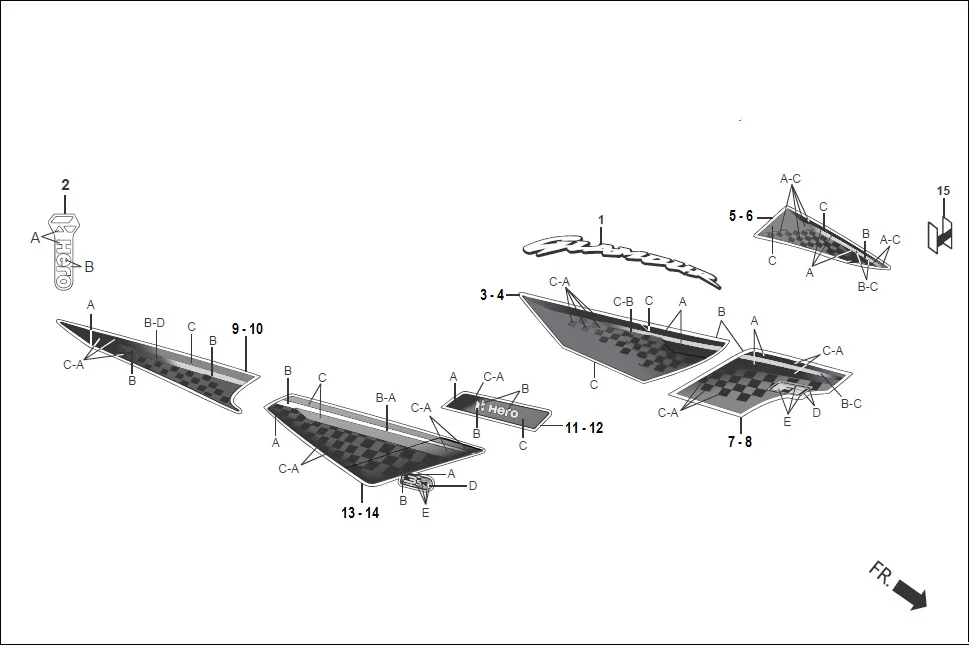

F-27 - STRIPES/MARKS
Hero GLAMOUR 125CC FV BSVI(Aug,2023) · 39 parts
Parts in This Assembly (39)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50201-ACL-J00 | EMBLEM FUEL TANK | 2 | |
| 2 | 86785-ACL-J00A | MARK HERO TAIL LIGHT COVER (TYPE-1) | 1 | |
| 3 | 17591-ACL-J00A | STRIPE R. FUEL TANK (TYPE-1) | 1 | |
| 3 | 17591-ACL-J00B | STRIPE R. FUEL TANK (TYPE-2) | 1 | |
| 3 | 17591-ACL-J00C | STRIPE R. FUEL TANK (TYPE-3) | 1 | |
| 4 | 17592-ACL-J00A | STRIPE L. FUEL TANK (TYPE-1) | 1 | |
| 4 | 17592-ACL-J00B | STRIPE L. FUEL TANK (TYPE-2) | 1 | |
| 4 | 17592-ACL-J00C | STRIPE L. FUEL TANK (TYPE-3) | 1 | |
| 5 | 86585-ACL-J00A | STRIPE COWL FRONT RH (TYPE-1) | 1 | |
| 5 | 86585-ACL-J00B | STRIPE COWL FRONT RH (TYPE-2) | 1 | |
| 5 | 86585-ACL-J00C | STRIPE COWL FRONT RH (TYPE-3) | 1 | |
| 6 | 86586-ACL-J00A | STRIPE COWL FRONT LH (TYPE-1) | 1 | |
| 6 | 86586-ACL-J00B | STRIPE COWL FRONT LH (TYPE-2) | 1 | |
| 6 | 86586-ACL-J00C | STRIPE COWL FRONT LH (TYPE-3) | 1 | |
| 7 | 86753-ACL-J00A | STRIPE R FT COWL (TYPE-1) | 1 | |
| 7 | 86753-ACL-J00B | STRIPE R FT COWL (TYPE-2) | 1 | |
| 7 | 86753-ACL-J00C | STRIPE R FT COWL (TYPE-3) | 1 | |
| 8 | 86754-ACL-J00A | STRIPE L FT COWL (TYPE-1) | 1 | |
| 8 | 86754-ACL-J00B | STRIPE L FT COWL (TYPE-2) | 1 | |
| 8 | 86754-ACL-J00C | STRIPE L FT COWL (TYPE-3) | 1 | |
| 9 | 86773-ACL-J00A | STRIPE COWL R SIDE (TYPE-1) | 1 | |
| 9 | 86773-ACL-J00B | STRIPE COWL R SIDE (TYPE-2) | 1 | |
| 9 | 86773-ACL-J00C | STRIPE COWL R SIDE (TYPE-3) | 1 | |
| 10 | 86774-ACL-J00A | STRIPE COWL L SIDE (TYPE-1) | 1 | |
| 10 | 86774-ACL-J00B | STRIPE COWL L SIDE (TYPE-2) | 1 | |
| 10 | 86774-ACL-J00C | STRIPE COWL L SIDE (TYPE-3) | 1 | |
| 11 | 86831-ACL-J00A | STRIPE A R SIDE COVER (TYPE-1) | 1 | |
| 11 | 86831-ACL-J00B | STRIPE A R SIDE COVER (TYPE-2) | 1 | |
| 11 | 86831-ACL-J00C | STRIPE A R SIDE COVER (TYPE-3) | 1 | |
| 12 | 86832-ACL-J00A | STRIPE A L SIDE COVER (TYPE-1) | 1 | |
| 12 | 86832-ACL-J00B | STRIPE A L SIDE COVER (TYPE-2) | 1 | |
| 12 | 86832-ACL-J00C | STRIPE A L SIDE COVER (TYPE-3) | 1 | |
| 13 | 86833-ACL-J00A | STRIPE B R SIDE COVER (TYPE-1) | 1 | |
| 13 | 86833-ACL-J00B | STRIPE B R SIDE COVER (TYPE-2) | 1 | |
| 13 | 86833-ACL-J00C | STRIPE B R SIDE COVER (TYPE-3) | 1 | |
| 14 | 86834-ACL-J00A | STRIPE B L SIDE COVER (TYPE-1) | 1 | |
| 14 | 86834-ACL-J00B | STRIPE B L SIDE COVER (TYPE-2) | 1 | |
| 14 | 86834-ACL-J00C | STRIPE B L SIDE COVER (TYPE-3) | 1 | |
| 15 | 86830-AAF-400 | EMBLEM WINDSCREEN | 1 | |
