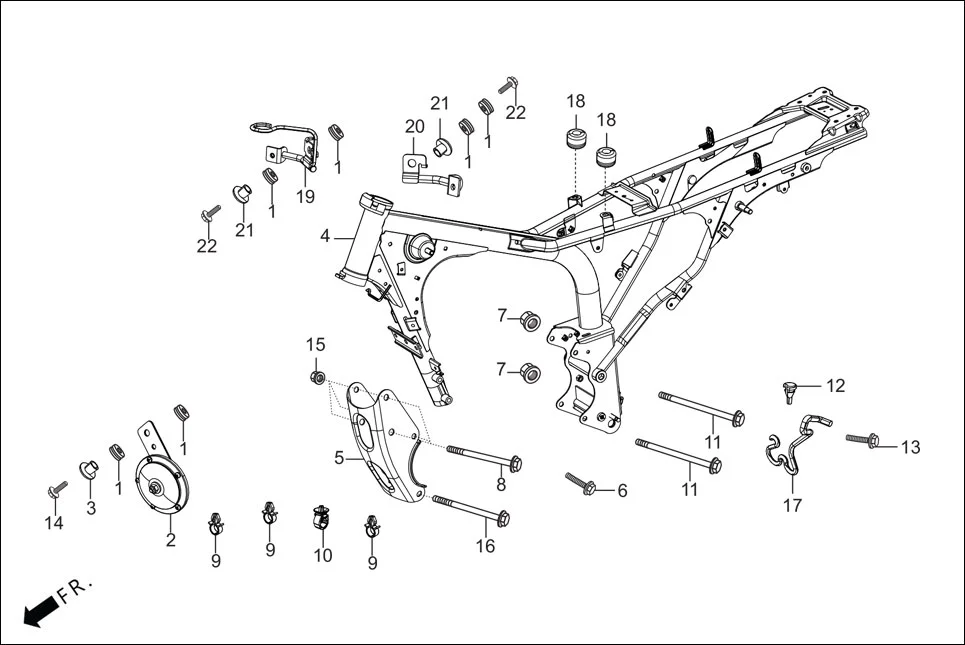

F-25 - FRAME BODY
Hero GLAMOUR 125CC FV BSVI(Aug,2023) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 6 | |
| 2 | 38110-AAN-00099 | HORN COMP | 1 | |
| 2 | 38110-AAE-001 | HORN COMP., | 1 | |
| 3 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 4 | 50100-ACL-J00 | FRAME BODY COMP., | 1 | |
| 5 | 50351-AAF-400 | PLATE FRONT ENG HANGER | 1 | |
| 6 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 7 | 94050-10000 | NUT, FLANGE, 10MM | 2 | |
| 8 | 95801-08090-00 | BOLT FLANGE 8X90 | 3 | |
| 9 | 43443-AAC-830 | CLIP CBS CABLE | 3 | |
| 10 | 50157-AAF-400 | CLIP HARNESS | 1 | |
| 11 | 90019-AAG-300 | BOLT FLANGE 10 X 110 | 2 | |
| 12 | 50137-AAR-000 | PLUG CABLE RETENTION | 1 | |
| 13 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 14 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
| 15 | 94050-08000 | NUT, FLANGE, 8MM | 4 | |
| 16 | 95801-08095-00 | BOLT, FLANGE, 8 X 95 | 1 | |
| 17 | 50168-AAF-400 | CBS CABLE GUIDE CLIP | 1 | |
| 18 | 50328-KVN-900 | RUBBER, TANK MTG. | 2 | |
| 19 | 50266-ACL-J00 | STAY SHROUD RH COMP | 1 | |
| 20 | 50276-ACL-J00 | STAY SHROUD LH COMP | 1 | |
| 21 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 22 | 90501-ABW-E00 | COLLAR 7MM | 2 | |
