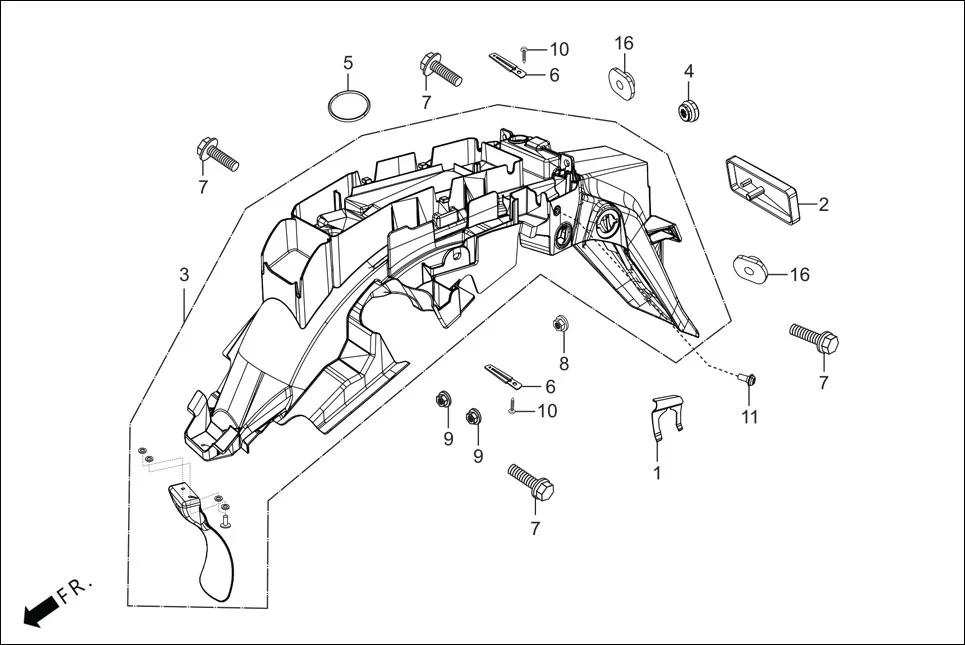

F-21 - REAR FENDER
Hero GLAMOUR 125CC FV BSVI(Aug,2023) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75581-AAN-B00 | SET SPRING LOCK KEY | 1 | |
| 2 | 33741-KST-920 | REFLEX REFLECTOR | 1 | |
| 2 | 33741-AAE-201 | REFLEX REFLECTOR | 1 | |
| 3 | 80100-AAN-B00 | FENDER COMP., RR. | 1 | |
| 4 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 1 | |
| 5 | 80123-KCC-870 | BAND, TOOL | 1 | |
| 6 | 94591-27000 | CLIP 2 X 70 | 2 | |
| 7 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 8 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 9 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
| 10 | 93903-34110 | SCREW, TAPPING, 4 X 8. | 2 | |
| 11 | 90101-GE0-000 | SCREW, HINGE PATCH | 1 | |
| 12 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
