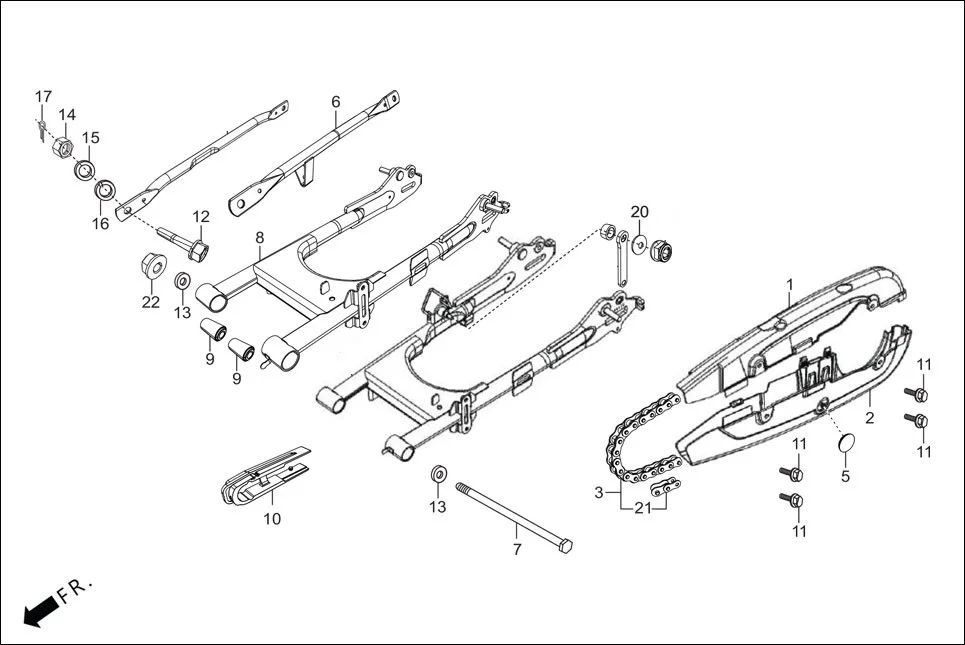

F-19-DRUM - REAR FORK/CHAIN CASE/SWINGARM
Hero GLAMOUR 125CC FV BSVI(Aug,2023) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-AAF-400 | CASE UP HALF DRIVE CHAIN | 1 | |
| 2 | 4052A-AAF-400 | CHAIN CASE UND HALF SUB ASSY | 1 | |
| 3 | 40530-AAN-B0099 | CHAIN DRIVE (LGB) | 1 | |
| 5 | 40545-ABA-000 | CAP, CHAIN PEEP HOLE | 1 | |
| 6 | 43432-AAF-400 | ARM SUB ASSY BRAKE STOPPER | 1 | |
| 7 | 52101-KST-940 | BOLT, SWING ARM PIVOT | 1 | |
| 8 | 52110-AAF-400 | SWINGARM COMP., RR. | 1 | |
| 9 | 52147-AAF-400 | RUBBER BUSH SWINGARM PIVOT | 2 | |
| 10 | 52170-AAF-400 | SLIDER, CHAIN | 1 | |
| 11 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 12 | 90133-331-770 | BOLT, HEX., 8MM | 1 | |
| 13 | 90183-KTC-900 | WASHER, SPL., 12 MM | 2 | |
| 14 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 15 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 16 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
| 17 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 20 | 94103-06000 | WASHER PLAIN,6MM | 1 | |
| 21 | 40531-AAN-B0099 | JOINT, RJ DRIVE CHAIN | 1 | |
| 22 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 22 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
