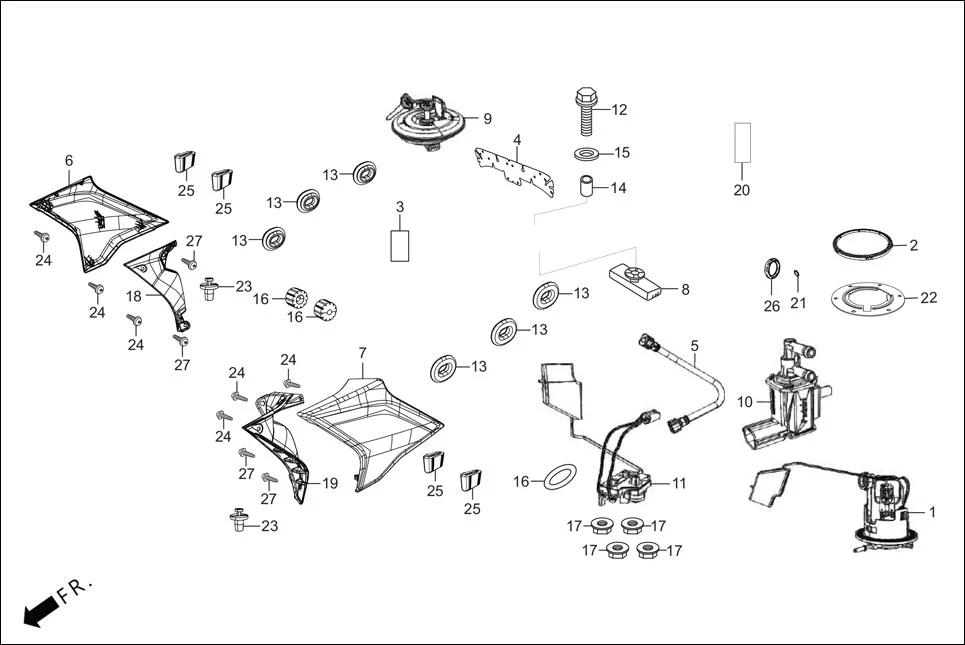

F-13 - FUEL TANK
Hero GLAMOUR 125CC FV BSVI(Aug,2023) · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16700-AAN-B02 | UNIT ASSY FUEL PUMP (JH) | 1 | |
| 2 | 17572-AAC-G70 | GASKET FUEL PUMP | 1 | |
| 3 | 17520-ACL-J00A | SET, FUEL TANK (CANDY BLAZING RED R-195C) | 1 | |
| 3 | 17520-ACL-J00B | SET, FUEL TANK (BLACK (TYPE-1)) | 1 | |
| 3 | 17520-ACL-J00C | SET, FUEL TANK (BLACK (TYPE-2)) | 1 | |
| 4 | 17521-ACL-J00 | TANK FILM PROTECTOR | 1 | |
| 5 | 17570-AAN-B0099 | FUEL HOSE | 1 | |
| 6 | 50261-ACL-J00A | SET R FT COWL (CANDY BLAZING RED R-195C) | 1 | |
| 6 | 50261-ACL-J00B | SET R FT COWL (BLACK (TYPE-1)) | 1 | |
| 6 | 50261-ACL-J00C | SET R FT COWL (BLACK (TYPE-2)) | 1 | |
| 7 | 50271-ACL-J00A | SET L FT COWL (CANDY BLAZING RED R-195C) | 1 | |
| 7 | 50271-ACL-J00B | SET L FT COWL (BLACK (TYPE-1)) | 1 | |
| 7 | 50271-ACL-J00C | SET L FT COWL (BLACK (TYPE-2)) | 1 | |
| 8 | 17613-KCC-900 | CUSHION, RR. TANK | 1 | |
| 9 | 17620-ACK-40099 | CAP COMP FUEL FILLER BS6 ETHANOL | 1 | |
| 10 | 17554-AAE-B0099 | PURGE SOLENOID VALVE | 1 | |
| 11 | 37800-AAN-B01 | UNIT ASSY FUEL | 1 | |
| 12 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 13 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 6 | |
| 14 | 90324-KCC-900 | COLLAR, 8 MM | 1 | |
| 15 | 90325-KCC-900 | WASHER, PLAIN, 8 MM | 1 | |
| 16 | 17611-KRM-860 | CUSHION, FR. FUEL TANK | 2 | |
| 17 | 94050-06000 | NUT, FLANGE, 6 MM | 4 | |
| 18 | 50265-ACL-J00 | FT. INNER COWL RH | 1 | |
| 19 | 50275-ACL-J00 | FT. INNER COWL LH | 1 | |
| 20 | 16701-AAC-801 | FUEL PUMP FILTER | 1 | |
| 21 | 16702-AAC-801 | FUEL PUMP O-RING | 1 | |
| 22 | 17507-AAN-B00 | PLATE SETTING | 1 | |
| 23 | 90683-AAB-D00 | CLIP TRIM | 2 | |
| 24 | 93903-24380 | SCREW TAPPING, 4 X 12 | 6 | |
| 25 | 77267-KTR-900 | RUBBER, COWL | 4 | |
| 26 | 16702-AAC-802 | FULE PUMP O-RING | 1 | |
| 27 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
