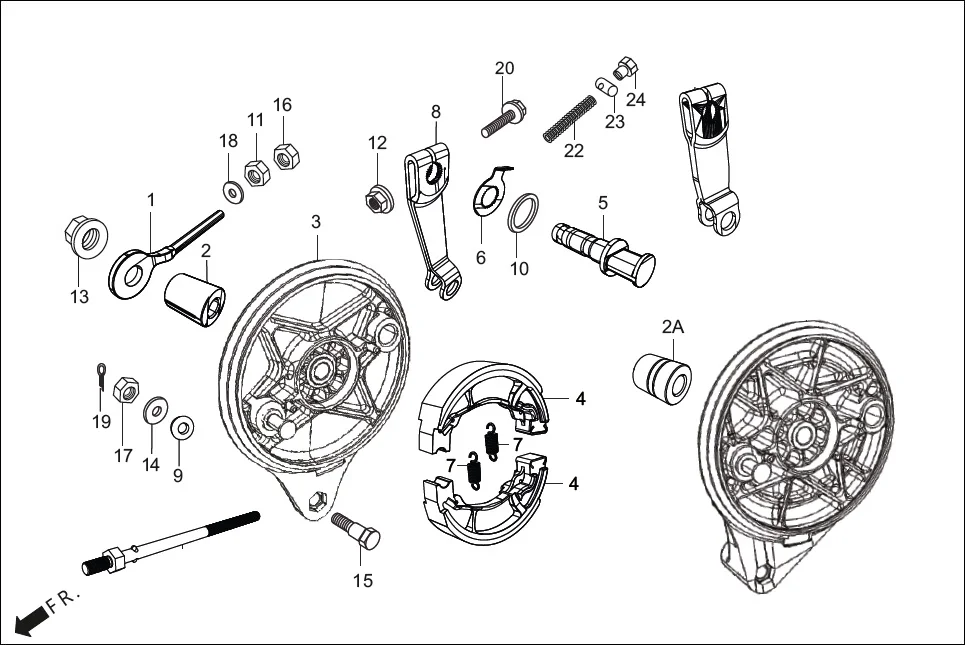

F-10-DRUM - REAR BRAKE PANEL
Hero GLAMOUR 125CC FV BSVI(Aug,2023) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40543-AAN-B00 | ADJUSTER, RCHAIN | 1 | |
| 2 | 42313-AAF-410 | COLLAR, RR. BRAKE PANEL SIDE | 1 | |
| 3 | 43100-KTR-700 | PANEL COMP., RR. BRAKE | 1 | |
| 4 | 45125-AAH-F0099 | SHOE COMP BRAKE | 2 | |
| 5 | 43141-KTC-900 | CAM, REAR BRAKE | 1 | |
| 6 | 45145-KFM-900 | INDICATOR, FR. BRK | 1 | |
| 7 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 8 | 43410-AAF-400 | ARM, RR. BRAKE | 1 | |
| 9 | 43434-ME1-670 | RUBBER, STOPPER ARM | 1 | |
| 10 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 11 | 90302-KBP-900 | NUT SPL 6 MM | 1 | |
| 12 | 90302-KTE-911 | NUT FLANGE PT 6MM | 1 | |
| 12 | 90301-473-000 | NUT,U 6MM | 1 | |
| 13 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 13 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 14 | 90505-425-000 | WASHER, 8 MM | 1 | |
| 15 | 92811-10000 | BOLT A BRAKE STOPPER | 1 | |
| 16 | 94001-06000-0S | NUT, HEX., 6 MM | 1 | |
| 17 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 18 | 94101-06000 | WASHER, PLAIN, 6 MM | 1 | |
| 19 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 20 | 95701-06035-00 | BOLT, FLANGE, 6X35 | 1 | |
| 22 | 43456-KSP-900 | SPRING BRAKE ROD | 1 | |
| 23 | 43455-KSP-900 | JOINT BRAKE ARM | 1 | |
| 24 | 43459-ACL-D10 | NUT BRK ROD ADJUST | 1 | |
