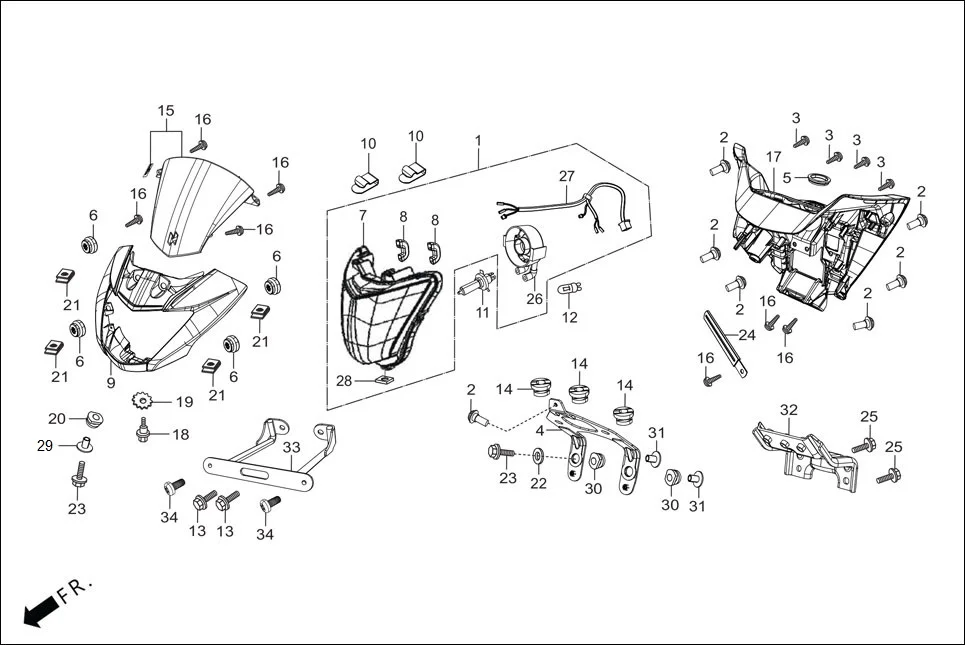

F-1-DISC - HEAD LIGHT
Hero GLAMOUR 125CC FV BSVI(Aug,2023) · 36 parts
Parts in This Assembly (36)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3310A-AAN-H02 | LIGHT ASSY HEAD(W/O BULB) | 1 | |
| 2 | 90101-GE0-000 | SCREW, HINGE PATCH | 7 | |
| 3 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 4 | |
| 4 | 61312-ACL-J00 | STAY METER MTG. | 1 | |
| 5 | 81132-AAE-B00 | COVER COMB AND LOCK | 1 | |
| 6 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 4 | |
| 7 | 33110-AAN-H02 | UNIT HEAD LIGHT | 1 | |
| 8 | 33101-KVN-901 | TUBE | 2 | |
| 9 | 61300-ACL-J00A | SET COWL FRONT | 1 | |
| 9 | 61300-ACL-J00B | SET COWL FRONT | 1 | |
| 9 | 61300-ACL-J00C | SET COWL FRONT | 1 | |
| 10 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 11 | 34901-KSP-910 | BULB, HEAD LIGHT | 1 | |
| 12 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 13 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 14 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 15 | 6410A-ACL-100 | VISOR FR. SUB ASSY. | 1 | |
| 16 | 93903-24310 | SCREW, TAPPING, 4X12 | 7 | |
| 17 | 83402-ACL-J00 | PANEL INNER | 1 | |
| 18 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
| 19 | 90307-GJ6-000 | WASHER, LOCK, 6 MM | 1 | |
| 20 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 1 | |
| 21 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 22 | 94103-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 23 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 3 | |
| 24 | 91410-ABW-000 | CLIP 3X130 | 1 | |
| 25 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 26 | 33112-KTN-921 | SOCKET COVER | 1 | |
| 27 | 33150-KTR-A21 | SOCKET ASSY., HEAD LIGHT | 1 | |
| 28 | 33128-GBL-000 | NUT, SPECIAL | 1 | |
| 29 | 90502-KVE-900 | COLLAR RUBBER CUSHION | 1 | |
| 30 | 61103-KVE-860 | RUBBER,FR COWL MOUNT | 2 | |
| 31 | 61104-428-000 | COLLAR, FR, FENDER | 2 | |
| 32 | 64332-ACL-J00 | STAY LOWER BRIDGE COMP | 1 | |
| 33 | 64311-KTR-A20 | BRACKET COMP., FR. NO. PLATE | 1 | |
| 34 | 93500-05012-0A | SCREW PAN, 5 X 12 | 2 | |
