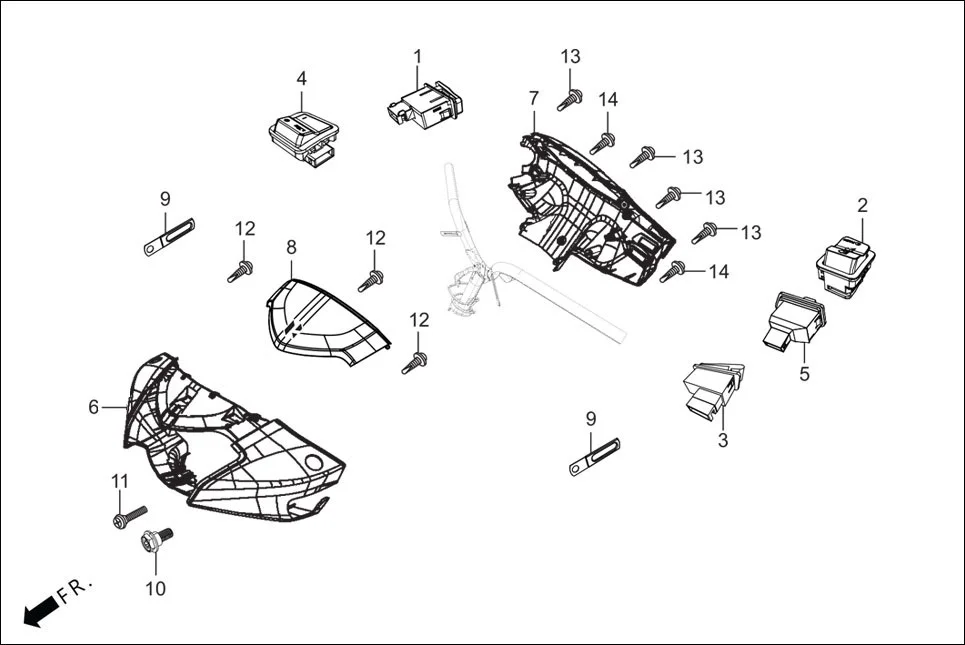

F-2B-HANDLE COVER
HeroDestini BSVI Prime(Jun,2023) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35160-AAL-901 | SWITCH, UNIT START | 1 | |
| 2 | 35170-ABT-001 | SW.UNIT.DIMMER | 1 | |
| 3 | 35180-KTP-890 | SWITCH, UNIT HORN | 1 | |
| 4 | 35190-ABS-001 | SW UNIT I3S | 1 | |
| 5 | 35200-KTP-890 | SWITCH, UNIT WINKER | 1 | |
| 6 | 53205-ABS-000S | COVER HANDLE FR PSW (WH-004P) | 1 | |
| 6 | 53205-ABS-000T | COVER HANDLE FR NOBLE RED (RD-021M) | 1 | |
| 6 | 53205-ABS-000Y | COVER HANDLE FR (MET. NEXUS BLUE BL(BR)-013M(G)) | 1 | |
| 6 | 53205-ABS-000R | COVER HANDLE FR PBM (NH-B08M) | 1 | |
| 7 | 53206-ABS-000 | COVER HANDLE RR | 1 | |
| 8 | 61140-ABS-D00S | SET WIND SCREEN (PSW EX SPARKLE ME. WH-004P) | 1 | |
| 8 | 61140-ABS-D00T | SET WIND SCREEN (NOBLE RED RD-021M) | 1 | |
| 8 | 61140-ABS-D00Y | SET WIND SCREEN (MET. NEXUS BLUE BL(BR)-013M(G)) | 1 | |
| 8 | 61140-ABS-D00R | SET WIND SCREEN PANTHER BLACK MET. NH-B08M | 1 | |
| 9 | 80107-AAY-000 | CLIP 0.5X50 | 2 | |
| 10 | 90113-AAY-000 | BOLT FLANGE, 5 X 17 | 1 | |
| 11 | 90116-KTP-900 | SCREW WASH 5X16 | 1 | |
| 12 | 93903-34210 | SCREW TAPPING 4X10 | 3 | |
| 13 | 93903-34480 | SCREW, TAPPING, 4X 16 | 4 | |
| 14 | 93903-35380 | SCREW TAPPING 5X16 | 2 |
