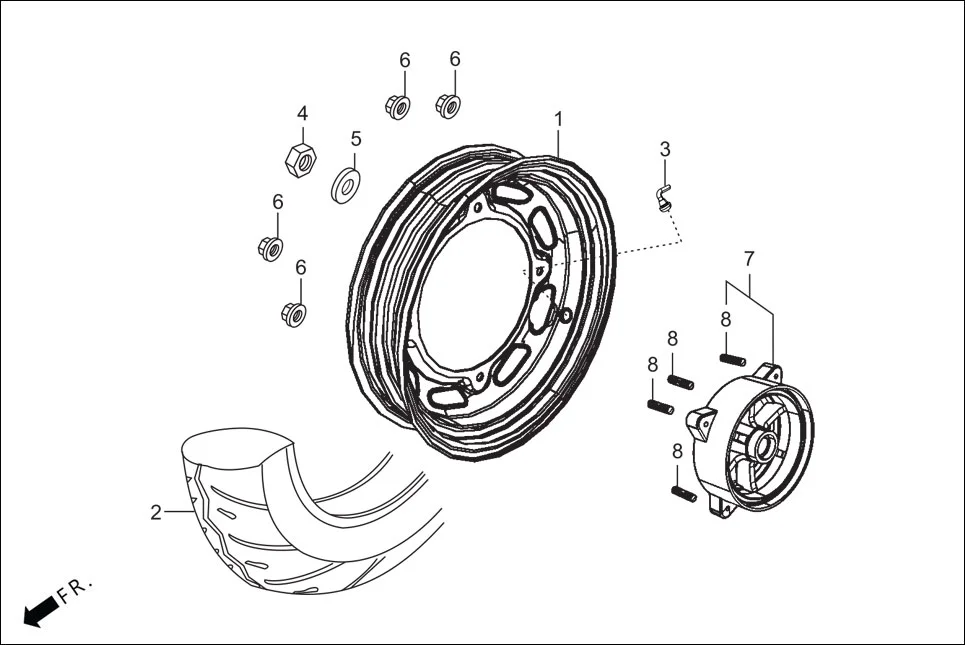

F-11-REAR WHEEL
HeroDestini BSVI Prime(Jun,2023) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42702-AAY-000 | RIM COMP WHEEL | 1 | |
| 2 | 42711-AAL-00099 | TYRE | 1 | |
| 3 | 42753-AAL-001 | RIM,VALVE | 1 | |
| 4 | 90305-KPL-900 | NUT, HEX, SPL., 16MM | 1 | |
| 5 | 90501-KPL-900 | WASHER, 16 MM | 1 | |
| 6 | 90309-KF0-000 | NUT, FLANGE, 8 MM | 4 | |
| 7 | 42610-KPL-900 | HUB SUB COMP. RR | 1 | |
| 8 | 90110-KPL-900 | BOLT, STUD, 8X22 | 4 |
