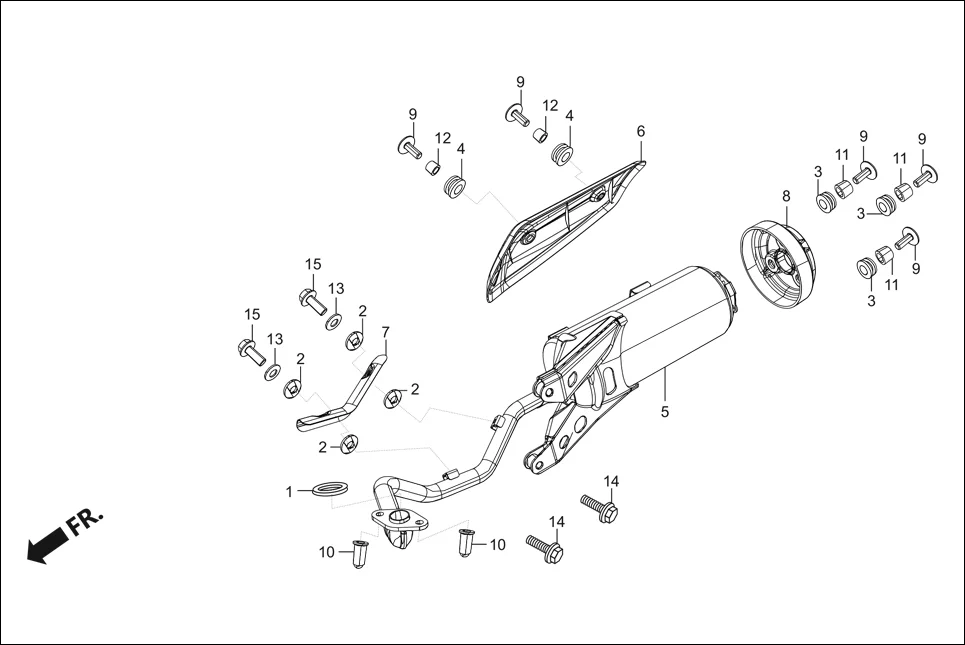

F-16-MUFFLER
HeroDestini 125 (Oct, 2018) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18292-GY1-610 | GASKET, EXH.PIPE | 1 | |
| 2 | 18292-KTP-900 | PACKING, PROTECTOR | 4 | |
| 3 | 18293-AAW-000 | RUBBER PKG. PROTECTOR | 3 | |
| 4 | 18293-KTP-900 | RUBBER, PKG, PROTECTOR | 2 | |
| 5 | 18300-ABS-000 | MUFFLER COMP EXH | 1 | |
| 6 | 18318-ABS-000 | PROTECTOR MUFFLER | 1 | |
| 7 | 18319-ABS-000 | PROTECTOR EXH PIPE | 1 | |
| 8 | 18340-ABS-000 | COVER TAIL CAP | 1 | |
| 9 | 90102-AAW-000 | BOLT. SPECIAL 6X20 | 5 | |
| 10 | 90308-KPL-840 | NUT, CAP, 6 MM | 2 | |
| 11 | 90312-AAW-000 | COLLAR M6X11 | 3 | |
| 12 | 90312-KTP-900 | COLLAR, M6 | 2 | |
| 13 | 94101-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 14 | 95801-AAW-000 | BOLT FLANGE 10X45 | 2 | |
| 15 | 96001-06010-07 | BOLT FLANGE, SH., 6 X 10 | 2 |
