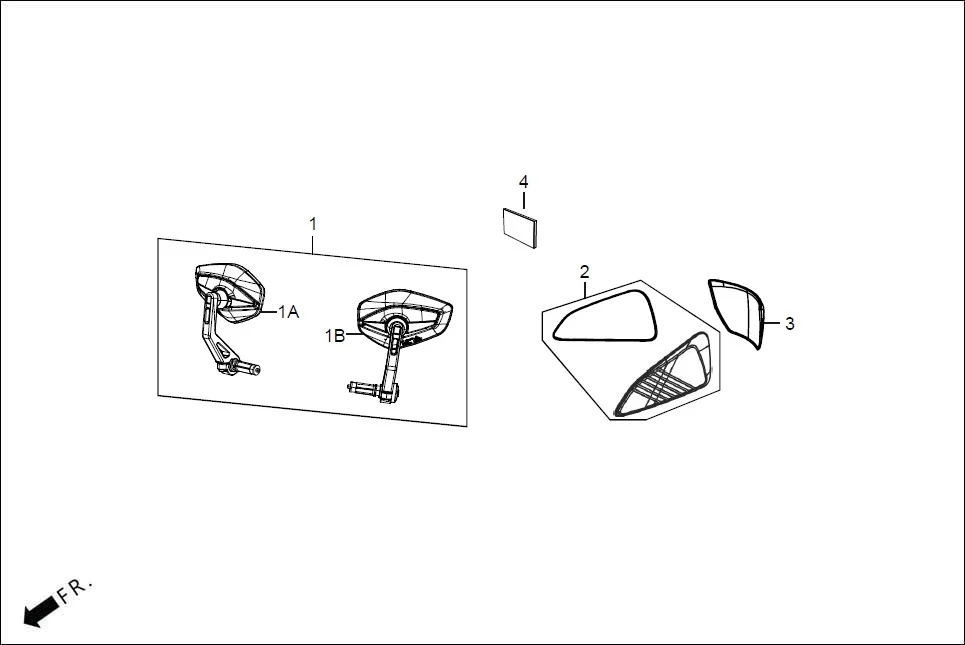

F-29C-(OPTIONAL)
HeroXTREME 160 4V NEXT(Oct.,2025) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ACRGB4M006000G | KIT BAR END MIRROR | 1 | |
| 1 | ACRGB4M004000G | MIRROR BAR END RH ASSY | 1 | |
| 1 | ACRGB4M005000G | MIRROR BAR END LH ASSY | 1 | |
| 2 | 1754B-ACR-000 | PAD TANK KIT | 1 | |
| 3 | 17547-ACR-000 | PAD TANK CENTER | 1 | |
| 4 | 77232-KVE-900 | CUSHION COWL CENTER B. | 1 |
