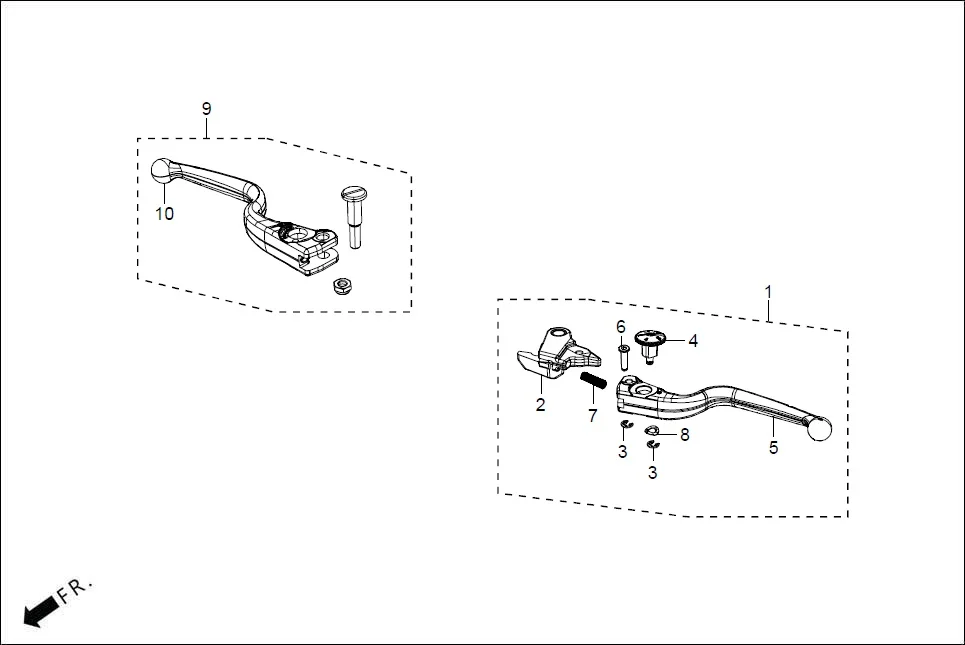

F-29D-(OPTIONAL)
HeroXTREME 160 4V NEXT(Oct.,2025) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ACRGC3L011000G | LEVER CLUTCH ADJUSTABLE ASSY | 1 | |
| 2 | ACRGC3L005000G | BRACKET CONNECTOR COMP | 1 | |
| 3 | SFCCT0001G | CIRCLIP E RING 4MM | 2 | |
| 4 | ACRGC3L007000G | CAM ADJUSTABLE LEVER | 1 | |
| 5 | ACRGC3L004000G | LEVER CLUTCH HANDLE | 1 | |
| 6 | ACRGC3F008000G | PIN LEVER BRAKE | 1 | |
| 7 | ACRGC3F009000G | SPRING BRAKE ARM RETURN | 1 | |
| 8 | ACRGC3F010000G | WASHER SPRING WAVED | 1 | |
| 9 | ACRGC3F014000G | SET LEVER | 1 | |
| 10 | ACRGC3F013000G | BRAKE LEVER RH | 1 |
