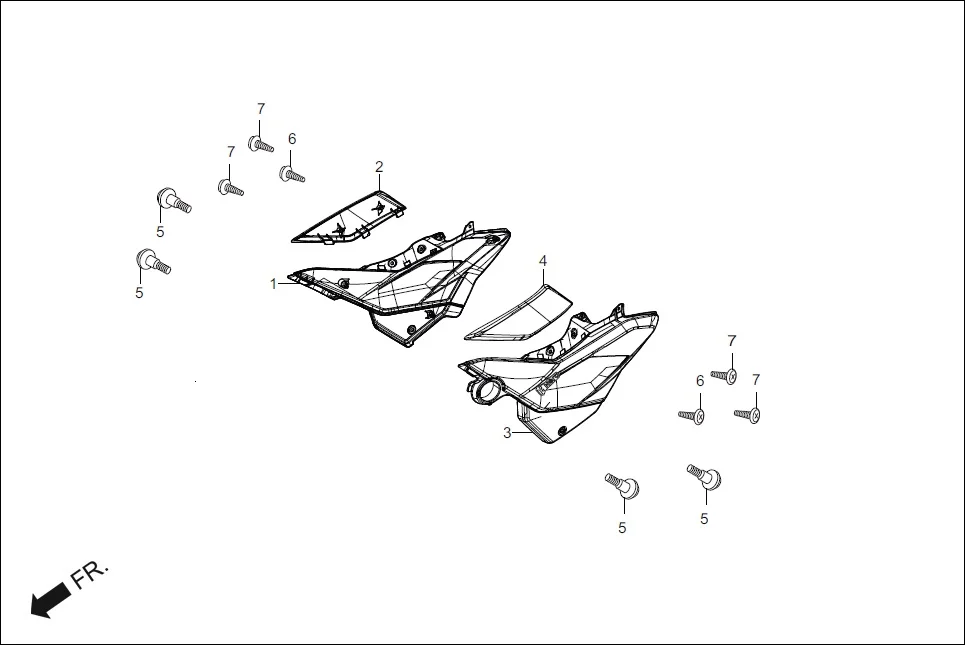

F-12-SIDE COVER
HeroXtreme 200S (May, 2019) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83500-AAB-D00R | SET COVER A, R SIDE (PANTHER BLACK ME.) | 1 | |
| 1 | 83500-AAB-D00T | SET COVER A, R. SIDE | 1 | |
| 2 | 83550-AAB-D00R | COVER B, R SIDE (PANTHER BLACK ME.) | 1 | |
| 2 | 83550-AAB-D00T | COVER B, R SIDE (MAPLE BROWN ME.) | 1 | |
| 2 | 83550-AAB-A00V | COVER B R SIDE (SRD, R-321) | 1 | |
| 3 | 83600-AAB-D00R | SET COVER A, L SIDE (PANTHER BLACK ME.) | 1 | |
| 3 | 83600-AAB-D00T | SET COVER A, L SIDE (MAPLE BROWN ME.) | 1 | |
| 4 | 83650-AAB-D00R | COVER B, L SIDE (PANTHER BLACK ME.) | 1 | |
| 4 | 83650-AAB-D00T | COVER B, L SIDE (MAPLE BROWN ME.) | 1 | |
| 4 | 83650-AAB-A00V | COVER B L SIDE (SRD, R-321) | 1 | |
| 5 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
| 6 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 2 | |
| 7 | 93903-34210 | SCREW TAPPING 4X10 | 4 |
